Individually measure and hand crafted to order. This braided steel wire ropes are sourced from major supplier and mill manufactured under strict compliance to international standards and regulations. Cable Sleeve are assembled with strict procedure to ensure uniformity and performance for a wide usage applications. Patterned Sleeves are sourced and individually compress with 10 tons pressurized system to ensure maximum holding strength to endure applied force stress for performing usage.
STEEL WIRE ROPE APPLICATIONS
Tie Down
Strapping
Canopy
Deterent gate and fencing
Deck railing
Arboring trellis
Animal leash
CABLE SPECIFICATION
1/4in OD Finished Diameter with PVC coated jacket
3/16in Braided Galvanized Steel Core
Cable Construction: 7 Strands by 19 Wires per strand
Galvanized wire rope (aka aircraft cable) is one of the most popular types of wire rope
Not intended for aircraft use, not certified to MIL-W-83420
Great for small, light-duty applications
Manufactured in accordance with International Standard ASTM A 1023
Adheres to federal RR-W-410H specification
4200lb breaking strength, please consult with a licensed engineer for guidance, and always follow the suggestive design factor of 1/7 of breaking strength calculation for usage

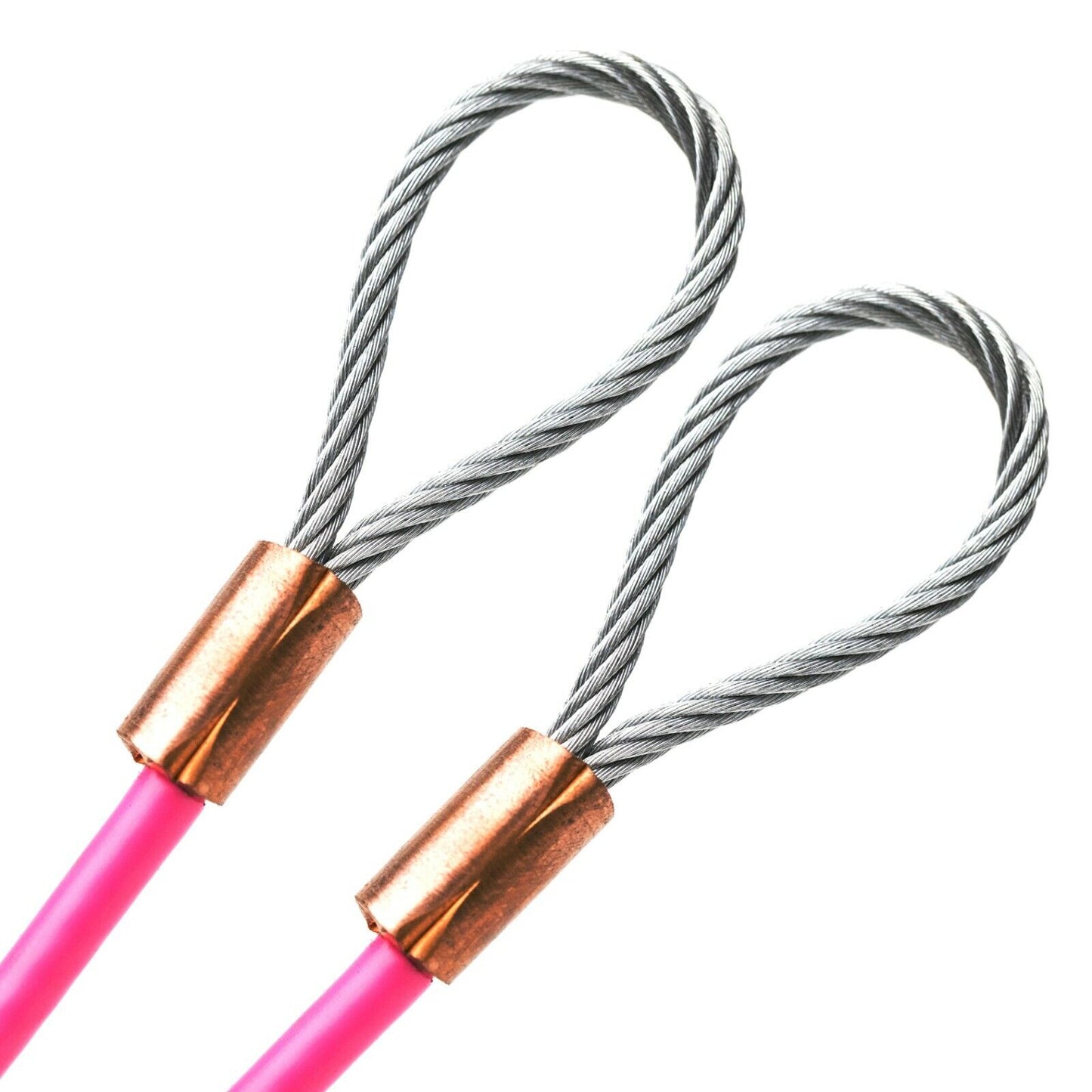

CABLE SLEEVES
Patterned Engineered Sleeve for secured bonding
Sleeve Material: Copper
Thimble Material: None
LENGTH
Cut and Assembled to order based on selected length
Listed length is based on cable ends to cable ends including the loop ends without force applied to the the loops that may enlogated the ends (depending on usage application)
Circumference of the natural formed "water droplet" shaped loop is 5.25in, this loop can snuggly fit an object with less than 1in diameter, comfortably fit over a 3/4in diameter object
*** ***
IMPORTANT INFORMATION
Cable breaking strength ratings are listed for comparison purposes only. Actual operating loads may vary, but should never exceed recommended design factor or 1/7 of catalog breaking strength. These cables are not designed for overheadlifting or aircraft use;
never exceed working load limit. Cable breaking strength is not considered safe working load limit.
PHAT SATELLITE INTL assumes no responsibility for the use, misuse, or misapplication of its products. Products are sold with the specific understanding that the purchaser and/or user are thoroughly familiar with their proper use
***DUE TO CUSTOMIZATION AND SAFETY RISKS THIS ITEM CANNOT BE RETURNED PER FEDERAL REGULATIONS***
