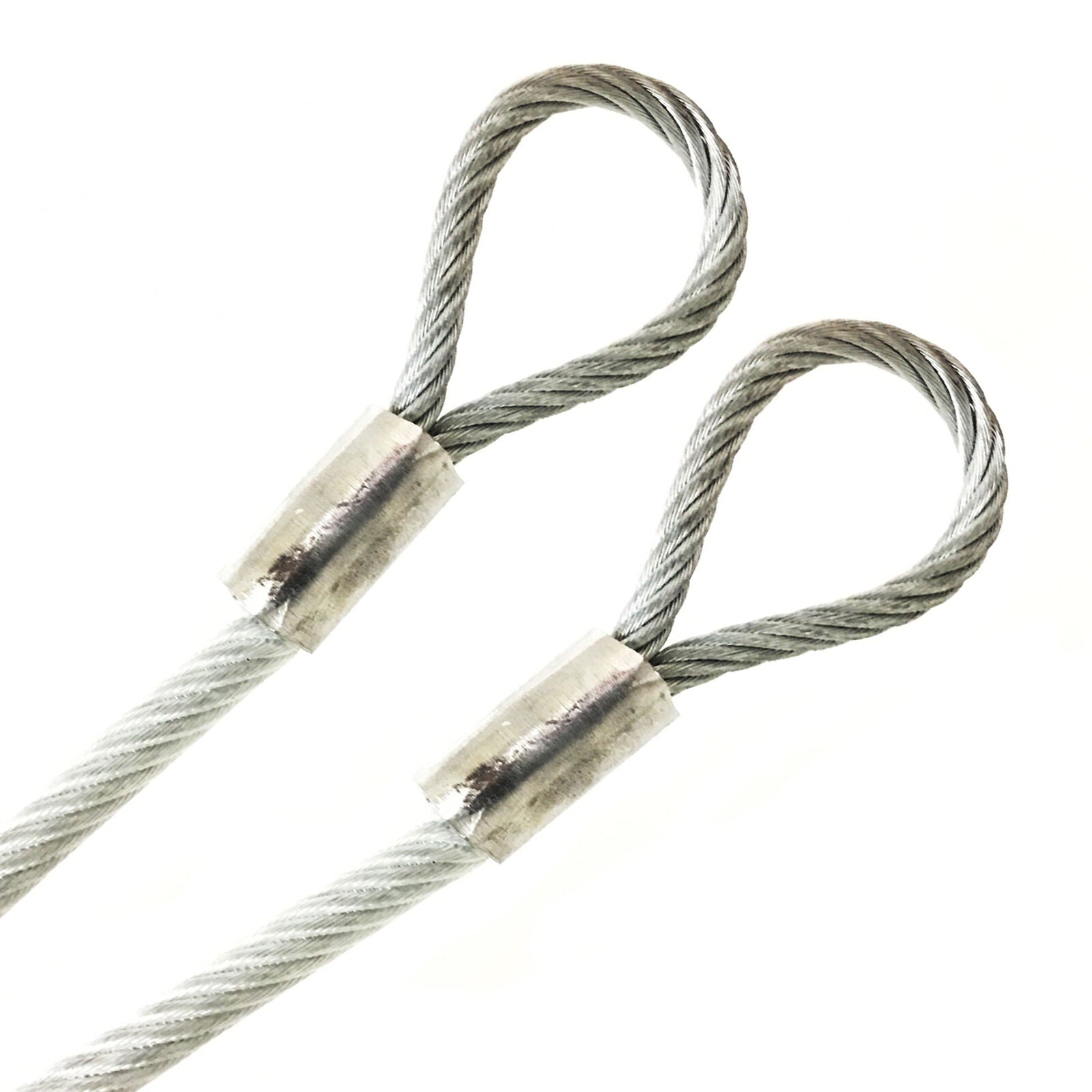

1-100ft MADE TO ORDER - VINYL COATED TO 1/4in -PREMIUM 304 GRADE - STAINLESS STEEL 7x19 BRAIDED 1/8 core WIRE CABLE TIN SLEEVED LOOP ENDS

1-100ft MADE TO ORDER - VINYL COATED TO 1/4in -PREMIUM 304 GRADE - STAINLESS STEEL 7x19 BRAIDED 1/8 core WIRE CABLE TIN SLEEVED LOOP ENDS

$13.80
$13.80
Sale Sold out
Length
    CABLE SPECIFICATION
  • 1-100 feet Stainless Steel Braided Wire Cable
  • Coating: Clear Vinyl
  • Outer Diameter: 3/16 inches
  • Core Diameter: 1/8 inches
  • Maximum Tensile Strength: 1760 lbs
  • AISI SAE [304]
  • Cable End Configuration: Looped on both ends with corrosion resistant Tin Plated Copper sleeve

    Stainless Steel Braided Cable Type 304 also classified as AISI [304] or SAE 304 is the most widely used type of stainless steel. Resistant to mild acids and chemicals. Long lasting and rust resistant, Stainless Steel is your best choice for high moisture environments.

    *** Length indicated on this listing is measured from the end of the loop(s) ***


    IMPORTANT INFORMATION
    Maximum Tensile Strength ratings are listed for comparison purposes only. Actual operating loads may vary, but should never exceed recommended design factor or 12% of maximum tensile strength. These cables are not designed for overhead lifting or aircraft use; never exceed working load limit. maximum tensile strength is not considered safe working load limit. PHAT SATELLITE INTL assumes no responsibility for the use, misuse, or misapplication of its products. Products are sold with the specific understanding that the purchaser and/or user are thoroughly familiar with their proper use. We recommend buyer to consult with a licensed engineer for proper usage safety.


    ***DUE TO CUSTOMIZATION AND SAFETY RISKS THIS ITEM CANNOT BE RETURNED***
