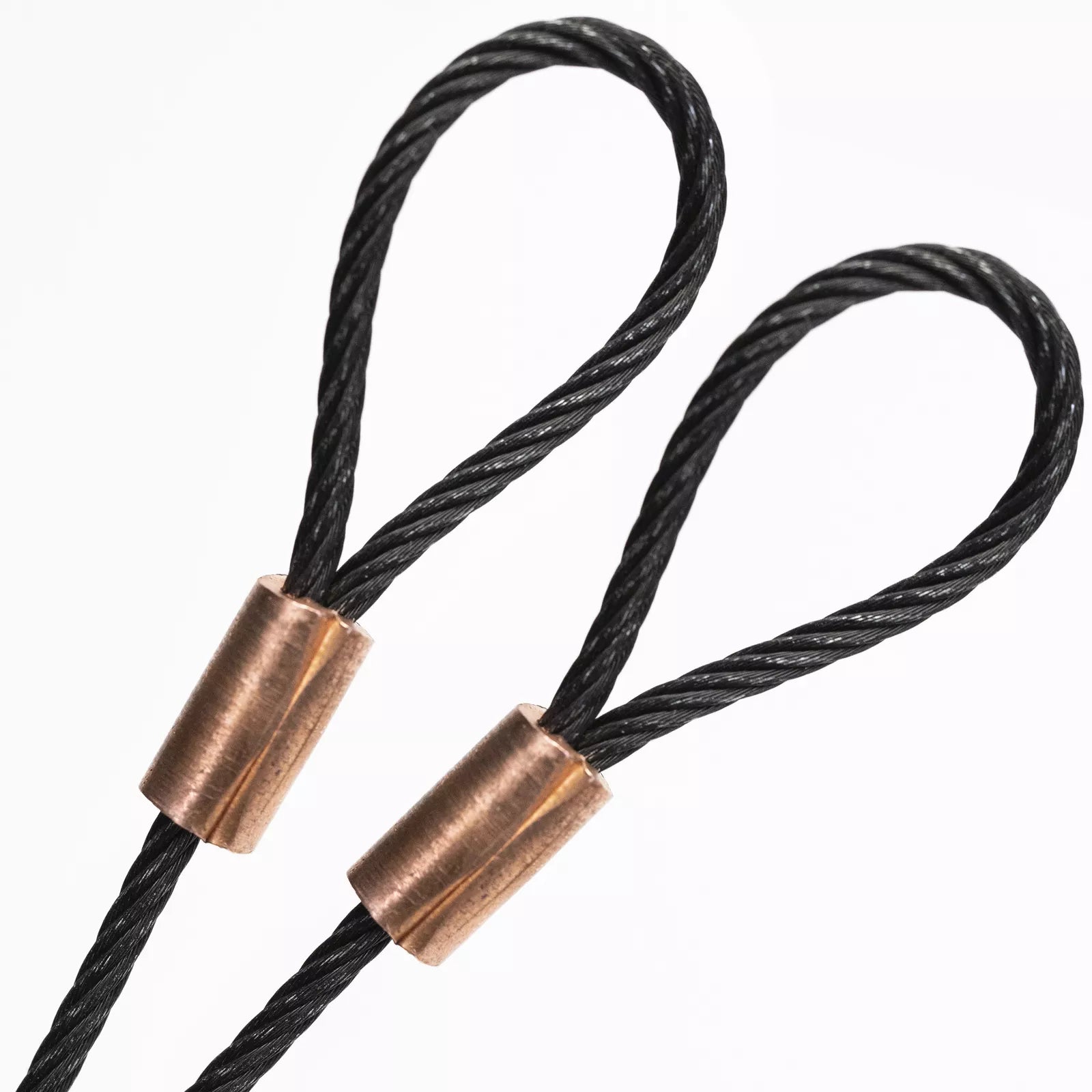

82ft Order To Size 3/16 Galvanized Steel Cable OXIDIZED Vinyl Coated With Copper Sleeves - Custom Loop Sizes Made in USA

Individually measure and hand crafted to order. This braided steel wire ropes are sourced from major supplier and mill manufactured under strict compliance to international standards and regulations. Cable Sleeve are assembled with strict procedure to ensure uniformity and performance for a wide usage applications. Patterned Sleeves are sourced and individually compress with 10 tons pressurized system to ensure maximum holding strength to endure applied force stress for performing usage.

OXIDIZED STEEL WIRE ROPE APPLICATIONS

• Theater staging
• Media Production
• Coffee Shop, Gift Store, Rustic Decor
• Furniture Decoration
• Lighting strapping
• Back Drop for Visual Performing events
• ** Note: These steel cable was processed through a chemical process that give the cable a flakely, rustic non-reflective black coating and is not recommended for outdoor usage. Oxidized process is purely a looks enhancement for the cable, may not suitable for all usage

CABLE SPECIFICATION

• 3/16in Oxidize Braided Galvanized Steel Core, no vinyl coating
• Cable Construction: 7 Strands by 19 Wires per strand
• Galvanized wire rope (aka aircraft cable) is one of the most popular types of wire rope
• Not intended for aircraft use, not certified to MIL-W-83420
• Great for small, light-duty applications
• Manufactured in accordance with International Standard ASTM A 1023
• Adheres to federal RR-W-410H specification
• 4200lb breaking strength, please consult with a licensed engineer for guidance, and always follow the suggestive design factor of 1/7 of breaking strength calculation for usage

CABLE SLEEVES

• Patterned Engineered Sleeve for secured bonding
• Sleeve Material: Copper (Copper will naturally change colors over time, developing a protective “patina” coating)
• Thimble Material: None

LENGTH

• Cut and assembled to order based on the selected cable length.
• Listed length is measured from the end of one loop to the end of the opposite loop with the cable in its natural relaxed position.
• Overall length includes both loop ends and may vary slightly when the loops are placed under tension or load.

CUSTOM LOOP SIZE

• Choose the loop size that best fits your application.
• Left and right loop sizes can be customized independently.
• Available loop sizes: 1.5", 3", and 5" (or as listed in the product options).
• Loop sizes are measured by the inside length of the naturally formed loop.
• Each cable is individually hand assembled and hydraulically compressed using copper sleeves for a secure, professional finish.
• Because each cable is custom made to your specifications, slight dimensional tolerances may occur.

IMPORTANT INFORMATION
Cable breaking strength ratings are listed for comparison purposes only. Actual operating loads may vary, but should never exceed recommended design factor or 1/7 of catalog breaking strength. These cables are not designed for overheadlifting or aircraft use; never exceed working load limit. Cable breaking strength is not considered safe working load limit. PHAT SATELLITE INTL assumes no responsibility for the use, misuse, or misapplication of its products. Products are sold with the specific understanding that the purchaser and/or user are thoroughly familiar with their proper use


***DUE TO CUSTOMIZATION AND SAFETY RISKS THIS ITEM CANNOT BE RETURNED PER FEDERAL REGULATIONS***
