About this item

• DISH Pro Plus (dual-tuner) receivers can be connected with a single-cable, when used with a DISH Pro Plus Separator.

• Provides four LNBF inputs for reception from up to four orbital locations.

• Supports connection of up to four satellite receivers.

• Supports a two-cable connection to DISH Pro Plus (dual-tuner) receivers, when not used with DP Plus Separators.

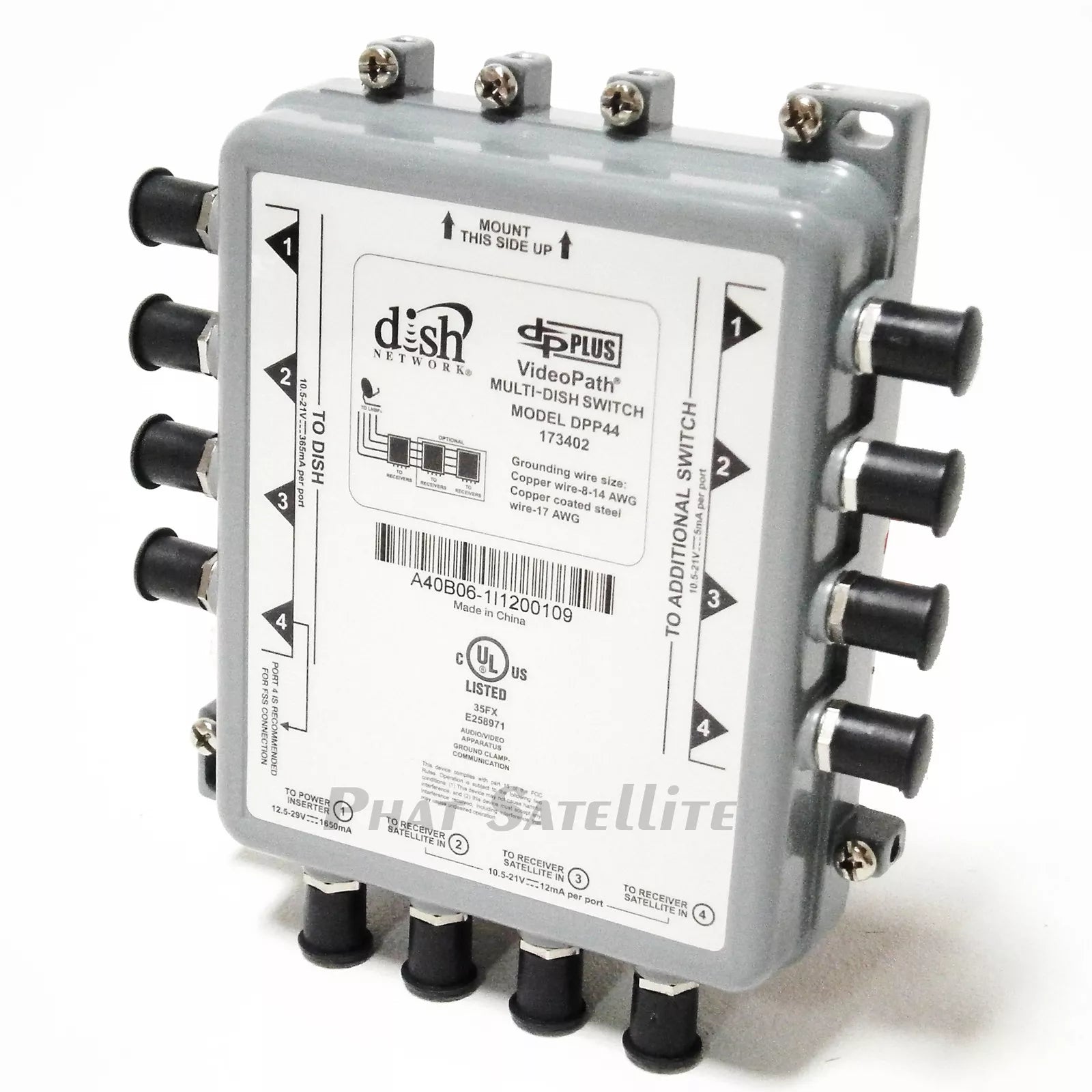

• Up to three DISH Pro or DISH Pro Plus switches can be “trunked” together to the right-side “To Additional Switch” output ports for additional receivers.

• DISH Pro Plus (dual-tuner) receivers include: DISH 322, DISH Player-DVR 522, DISH 721, DISH Player-DVR 921, Equivalent JVC and RCA models

• Installation Information:

• This switch includes a power inserter which must be installed on port 1.
  LNBF/Switch Connectivity

• Switch provides inputs for up to four orbital locations.

• As with any switch, do not connect both 61.5° and 148°.

• For Legacy receivers, review the Installation Guide and the table below.

• The DP Plus 44 switch is compatible with all DISH Pro and DISH Pro Plus LNBFs.

• It is not compatible with legacy LNBFs/switches. Receiver Connectivity

• Supports connection of up to four satellite receivers in any combination:

•  Single-cable connection to DISH Pro Plus (dual-tuner) receivers, when each is used with a DP Plus Separator.

• Two-cable connection to DISH Pro Plus receivers, when not used with DP Plus Separators.

• Single-cable connection to DISH Pro receivers.

• Single-cable connection to Legacy receivers, without a DISH Pro Adapter.

• Installation Notes

• DP Plus 44 Switch can be installed outdoors.

• Power insertion is required on port 1 of each DP Plus 44 switch.

• The Power Inserter and power supply must be installed indoors.

• Do not install any components, such as diplexers, between the power inserter and the switch.

• Diplexers can be installed between the satellite receiver’s Satellite In ports and the Switch’s ports 2, 3, 4, or the Power Inserter’s “To Receiver Satellite In” port.

• A receiver is not required to be installed on port 1.

• As with all DISH Pro installations, cable and components between the LNBFs, switches, DP Plus Separator and receivers must be rated to 2150 MHZ and pass 22 KHz tone.
