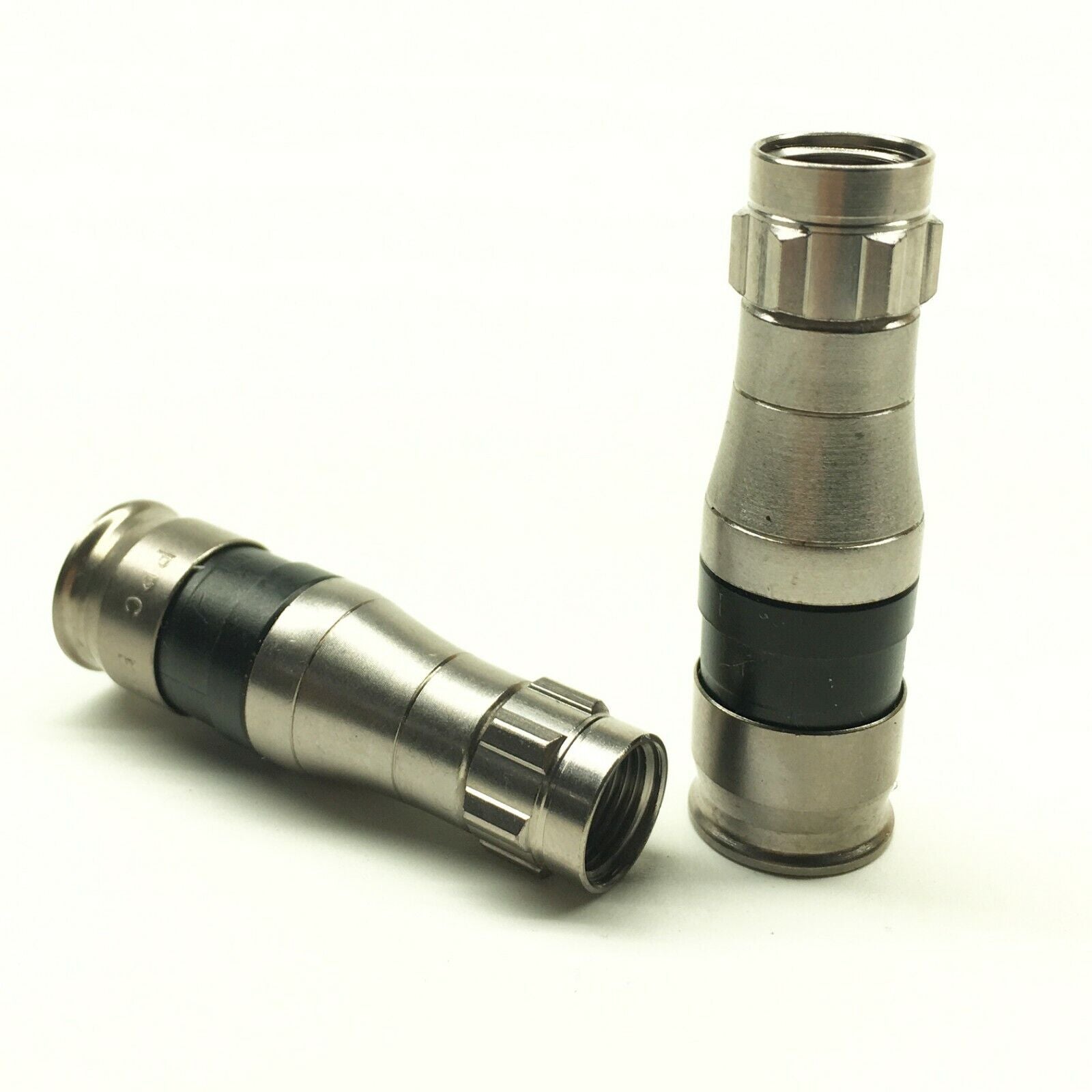

EX11N716PLUS RG11 Coaxial Cable Compression Connenctor

• INDOOR RG11 Male F-type to Male F-type coaxial connector
• Plastic body seals the back end of the connector from environmental factors
• Metal compression ring also allows industry leading cable retention values from standard to quad shield
• Maintains ground continuity even when very loose
• Reduces QAM errors/packet loss
• Integrated Weather Seal (Weather boot) ensures a moisture-tight seal on every connection and enables an easy visual port entry
• Protects against digital video artifacts, DOCSIS performance degradation, LTE interference, and upstream signal-to-noise issues
• Knurled grip enhances ability to pre-tighten with fingers prior to wrench tightening
• Bandwidth 0 MHz to 3 GHz
  Impedance 75 Ohms (nominal)
  Return Loss (Gated)
  5 to 3,000 MHz -30 dB Minimum
  1,000 to 2000 MHz -30 dB Minimum
  2,000 to 3,000 MHz -20 dB Minimum
  Insertion Loss 5 to 3,000 MHz Less than .20 dB
  Operating Temperature -40 °F to 140 °F (-40 °C to 60 °C)
  Cable Retention 75 lbs (34.2kg) minimum
• Constructed with Brass, Nickel Plated, Anti-Corrosion Materials
• Excellent Shielding Protection
• Unique 7/16 in Snap Torque in nut profile allows hand tightening while discouraging wrench-tightening on CPEs
• Maintains ground continuity even when very loose
• Reduces QAM errors/packet loss
• Prevents service issues from loose connections

*** ***
