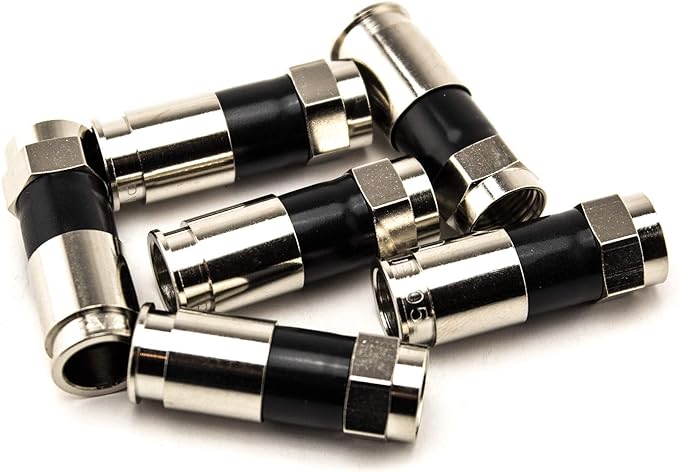

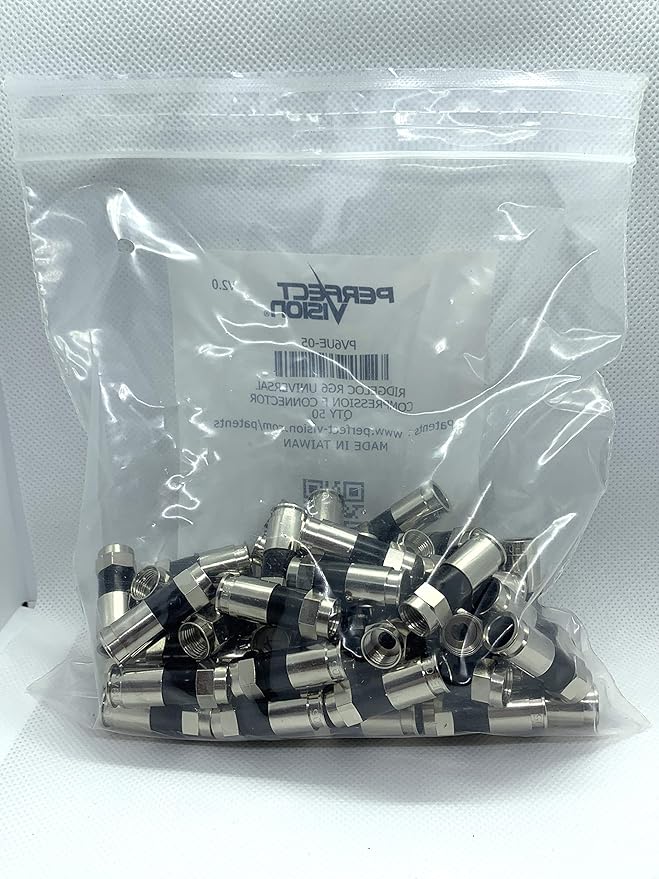

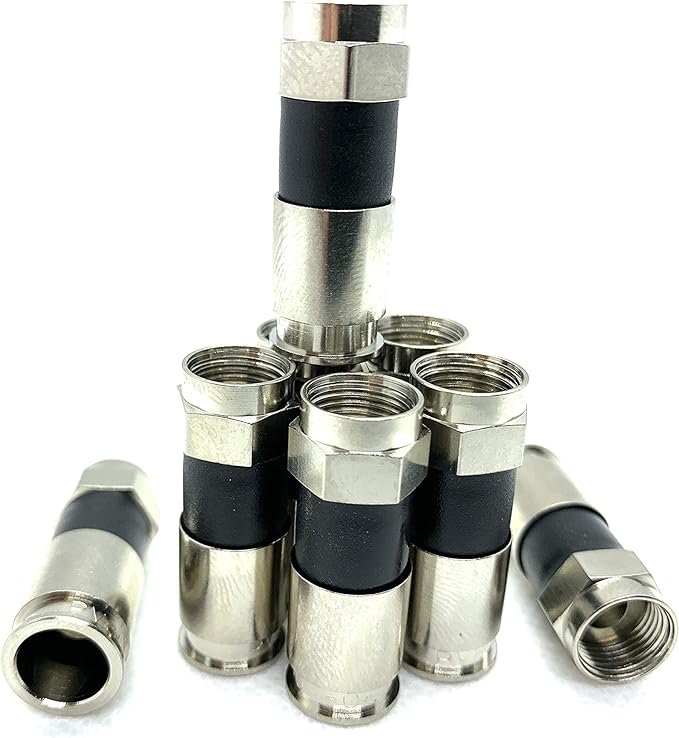

Perfect Vision Ridgeloc Rg6 Coax Cable Connector Compression F-type Fitting Female
Perfect Vision Ridgeloc Rg6 Coax Cable Connector Compression F-type Fitting Female
Regular price
$5.50
Regular price
Sale price
$5.50
Unit price
/
per
- Male F-type to Male F-type coaxial connector
- Designed for DBS and broadband installations. Compatible with all application frequencies.
- Engineered from precision machined copper alloy, UV protected POM, silicone rubber and rubber (“O” ring).
- The ANYTOOL® design works with ANY standard compression tool.
- Rear shell cannot back up. Locks coax cable securely and positively in place.
- Additional sealing “O” ring at post face
- Indoor and Outdoor application, tested to SCTE standards, weatherproof for hostile environments
- 21mm XL standards
- Bandwidth: 2 MHz to 3 GHz
Impedance: 75 Ohms nominal
Shielding Effectiveness: Better than -80 dB (cable dependent)
Return Loss: Minimum -30db to 2.2 GHz
Operating Temperature -40 °F to 140 °F (-40 °C to 60 °C)
Cable Retention 43 lbs minimum - 7/16 in nut profile
- SCTE-103-2004 (DC Contact Resistance), ASTM-B117-03 (Salt Spray Test), ANSI/SCTE-99-2004 (Axial Pull Test), SCTE-98-2004 (Tightening Torque), SCTE-73-2002 (Coaxial Insertion Force), SCTE-48-3-2004 (Shielding Effectiveness), ANSI/SCTE-04-1997 (F Connector Return Loss), SBCA Standards of Physical Dimension Tolerance, GR-1503-Core, Issue 1, March 1995 (UV Degradation)
*** ***
