Phat Satellite - Aerial RG11 Outdoor Copper-Clad Steel 77% Braided Shield Coaxial Cable with Weather Boot, Made in USA

Individually hand crafted, MADE IN USA, swept tested in the USA. OUTDOOR 3GHz 75 Ohm 77% BRAIDED shield Solid Core RG11 designed for aerial line signal transmission UL listed. CM rated compliance to UL standards. The connectors are selectively paired, high pressure-compressed onto the cable's jacket to ensure resilience to withstand abrasion from installation works. Each cable are swept tested and made to strict standard specifications with 6 staging quality control procedures.

CABLE APPLICATIONS

• Ultra High Definition (UHD) 4k Cable TV Antenna
• Gigabit High Speed cable internet service
• best for application or device that require a F-type connector coaxial cable longer than 150ft long
• 3Ghz rated Signal amplifier for various applications
• application with high frequency digital transmission

CABLE SPECIFICATION

• Solid copper clad steel core 14AWG, Nominal OD: 1.626mm

• Gas Injected Foam PE 0.280 inches (7.11 mm)

• Jacket Material Fire retardant PVC
• Inner Shield (Braid) Coverage 77 %
• Inner Shield (Braid) Material Aluminum
• Inner Shield (Tape) Material Aluminum/Polymer/Aluminum (APA) bonded
• Outer Shield (Tape) Material Aluminum/Polymer/Aluminum (APA) bonded
• Environmental Space AERIAL Flame Test Listing CATV | CM | NEC Article 800 | NEC Article 820
• Dielectric Foil Shield Braid Shield

• Messenger Wire Material Zinc-coated steel
• Corrosion Protection BrightWire®
• Aluminum Laminated Shielding Tape with adhesive 0.288 ± 0.006 inches (7.32 ± 0.15 mm) 100% (18% overlap minimum)
• #34 AWG Aluminum Alloy 60% coverage braids 0.400 ± 0.008 inches (10.16 ± 0.20 mm)
• Flame Retardant PVC, Black

• UL Listed CATV / CM

• Ultra HD approved

• Capacitance 53.15 pF/m | 16.2 pF/ft
• Operating Temperature: -30°C through +60°C

• Characteristic Impedance 75 ohm
• Characteristic Impedance Tolerance ±3 ohm
• dc Resistance Note Nominal values based on a standard condition of 20 °C (68 °F)
• dc Resistance, Inner Conductor, nominal 41.011 ohms/km | 12.5 ohms/kft
• dc Resistance, Loop, nominal 55.118 ohms/km | 16.8 ohms/kft
• dc Resistance, Outer Conductor, nominal 14.108 ohms/km | 4.3 ohms/kft
• Nominal Velocity of Propagation (NVP) 85 %
• Operating Frequency Band 5–3000 MHz
• Structural Return Loss, Grade A =15 dB @ 1801–3000 MHz | =20 dB @ 5–1800 MHz

CONNECTORS

• WATER SHIELD OUTDOOR RG11 Male F-type to Male F-type coaxial connector
• Plastic body seals the back end of the connector from environmental factors
• Metal compression ring also allows industry leading cable retention values from standard to quad shield
• Maintains ground continuity even when very loose
• Reduces QAM errors/packet loss

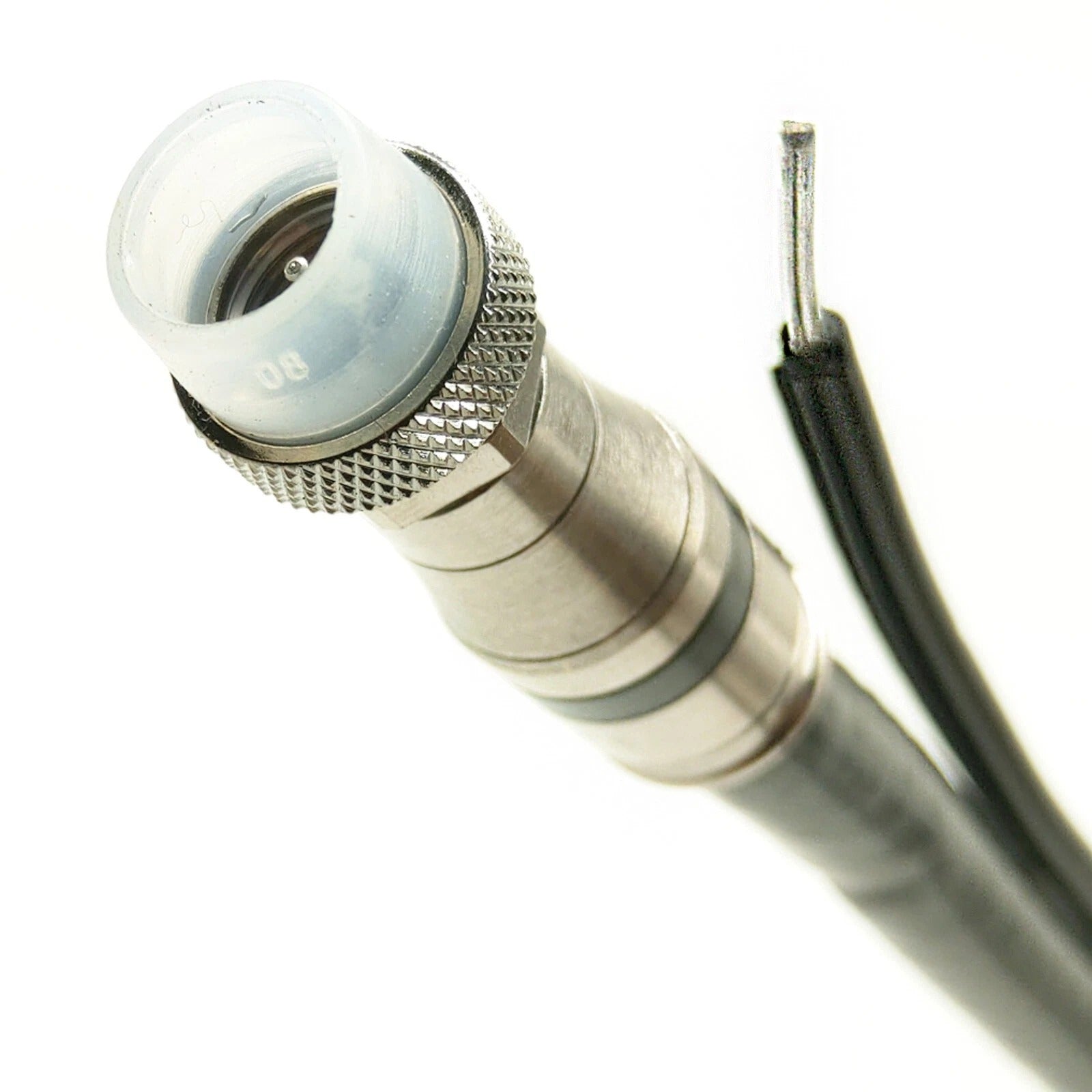

• Integrated Weather Seal (Weather boot) ensures a moisture-tight seal on every connection and enables an easy visual port entry
• Protects against digital video artifacts, DOCSIS performance degradation, LTE interference, and upstream signal-to-noise issues
• Knurled grip enhances ability to pre-tighten with fingers prior to wrench tightening
• Bandwidth 0 MHz to 3 GHz
  Impedance 75 Ohms (nominal)
  Return Loss (Gated)
  5 to 3,000 MHz -30 dB Minimum
  1,000 to 2000 MHz -30 dB Minimum
  2,000 to 3,000 MHz -20 dB Minimum
  Insertion Loss 5 to 3,000 MHz Less than .20 dB
  Operating Temperature -40 °F to 140 °F (-40 °C to 60 °C)
  Cable Retention 75 lbs (34.2kg) minimum
• Constructed with Brass, Nickel Plated, Anti-Corrosion Materials
• Excellent Shielding Protection
• Unique 7/16 in Snap Torque in nut profile allows hand tightening while discouraging wrench-tightening on CPEs
• Maintains ground continuity even when very loose
• Reduces QAM errors/packet loss
• Prevents service issues from loose connections

*** ***

IMPORTANT INFORMATION

Standard RG-11 cable: there is no minimum trunk-cable section length requirement. The maximum allowable total length of a segment is 1,000 m (3,280 ft) with two taps connected. Typical signal loss is approximately around -3.9 dB on the low frequencies, -6.36 dB on the high frequencies for distances of 100 ft. Please consider length below 500ft for minimal signal loss for most TV and satellite TV applications. We recommend to use RG11 for length above 150ft and longer. For recommendation and or usage application, please consult with your service provider or our helpdesk prior to making a purchase.
