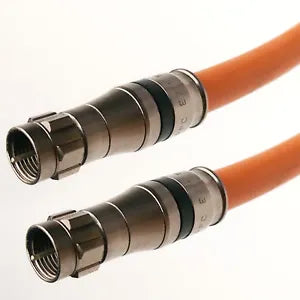

PHAT SATELLITE INTL - Enhanced RG11U Tri Shield Direct Burial Coax Underground Coaxial Cable in USA (Orange)

Individually hand crafted, swept tested in the USA. Tri-shield Solid Core Direct Burial RG11 designed for Direct Burial Underground signal transmission, semi-wet gel coated braids with moisture inhibitor UL listed. Underground usage with moisture proofed jacket in compliance to UL standards. The connectors are selectively paired, high pressure-compressed onto the cable's jacket to ensure resilience to withstand abrasion from installation works. Each cable are swept tested and made to strict standard specifications with 6 staging quality control procedures.

CABLE APPLICATIONS

• Ultra High Definition (UHD) 4k Cable TV
• Gigabit High Speed cable internet service
• best for application or device that require a F-type connector coaxial cable longer than 150ft long
• Signal amplifier for various applications
• application with high moisture environment that requires moisture inhibitor properties for extra signal transmission protection

CABLE SPECIFICATION

• Solid Copper Clad Core 14AWG, Nominal OD: 1.63 ± 0.02 mm
• Adhesive: EAA
  Foil Shield Coverage: 100% (20% Overlap Min ) each shield
  Foil Shield Material: Aluminum Alloy
  Braid Coverage: 77% coverage braid with semi wet gel coated for moisture protection
• Gas Injected Foamed PE, Nominal OD 10.29 ± 0.12mm
• Impedance 75 Ohms ± 3 Ohms
  Velocity of Propagation 81%
  Capacitance 15.2 pF/ft
  Nominal Delay 1.11 NS/ft.
  Inner Conductor DC Resistance 22 Ω/km
  Shield DC Resistance 19 Ω/km
  Sweep Tested 5 MHz to 2000 MHz
  UL Listed CATV / CM
• Ultra HD approved
• burial environment usage
• Operating Temperature: -40°C through +75°C
• Bonded APA Laminate Shield
• PVC jacket Complies with UL 1581
• Jacket Nominal OD 10.30 ± 0.15mm

CONNECTORS

• INDOOR RG11 Male F-type to Male F-type coaxial connector
• Plastic body seals the back end of the connector from environmental factors
• Metal compression ring also allows industry leading cable retention values from standard to quad shield
• Maintains ground continuity even when very loose
• Reduces QAM errors/packet loss
• Integrated Weather Seal (Weather boot) ensures a moisture-tight seal on every connection and enables an easy visual port entry
• Protects against digital video artifacts, DOCSIS performance degradation, LTE interference, and upstream signal-to-noise issues
• Knurled grip enhances ability to pre-tighten with fingers prior to wrench tightening
• Bandwidth 0 MHz to 3 GHz
  Impedance 75 Ohms (nominal)
  Return Loss (Gated)
  5 to 3,000 MHz -30 dB Minimum
  1,000 to 2000 MHz -30 dB Minimum
  2,000 to 3,000 MHz -20 dB Minimum
  Insertion Loss 5 to 3,000 MHz Less than .20 dB
  Operating Temperature -40 °F to 140 °F (-40 °C to 60 °C)
  Cable Retention 75 lbs (34.2kg) minimum
• Constructed with Brass, Nickel Plated, Anti-Corrosion Materials
• Excellent Shielding Protection
• Unique 7/16 in Snap Torque in nut profile allows hand tightening while discouraging wrench-tightening on CPEs
• Maintains ground continuity even when very loose
• Reduces QAM errors/packet loss
• Prevents service issues from loose connections

*** ***

IMPORTANT INFORMATION

Standard RG-11 cable: there is no minimum trunk-cable section length requirement. The maximum allowable total length of a segment is 1,000 m (3,280 ft) with two taps connected. Typical signal loss is approximately around -3.9 dB on the low frequencies, -6.36 dB on the high frequencies for distances of 100 ft. Please consider length below 500ft for minimal signal loss for most TV and satellite TV applications. We recommend to use RG11 for length above 150ft and longer. For recommendation and or usage application, please consult with your service provider or our helpdesk prior to making a purchase.
