PHATSAT

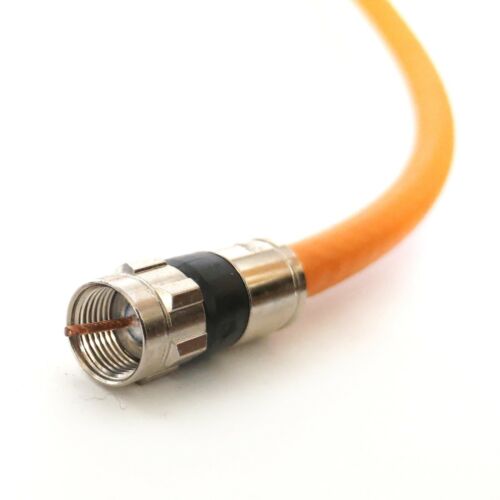

PHAT Satellite - Enhanced RG6U Tri Shield Direct Burial Coax Underground Coaxial Cable in USA (1 to 50 feet, Orange)

PHAT Satellite - Enhanced RG6U Tri Shield Direct Burial Coax Underground Coaxial Cable in USA (1 to 50 feet, Orange)

Regular price $7.00
Regular price Sale price $7.00
Sale Sold out
Length

Individually hand crafted, swept tested in the USA. Tri-shield Solid Core Direct Burial RG6 designed for Direct Burial Underground signal transmission, semi-wet gel coated braids with moisture inhibitor UL listed. Underground usage with moisture proofed jacket in compliance to UL standards. The connectors are selectively paired, high pressure-compressed onto the cable's jacket to ensure resilience to withstand abrasion from installation works. Each cable are swept tested and made to strict standard specifications with 6 staging quality control procedures.



CABLE APPLICATIONS

  • Ultra High Definition (UHD) 4k Cable TV
  • Gigabit High Speed cable internet service
  • remote sensor, RDF modulators and devices
  • Signal amplifier for various applications
  • application with high moisture environment that requires moisture inhibitor properties for extra signal transmission protection



CONNECTORS

  • Male F-type to Male F-type coaxial connector
  • Uses the dynamic range of the tough yet versatile plastic body to seal in the most effective way possible.
  • Metal compression ring also allows industry leading cable retention values through all cable sizes in the field
  • Bandwidth 0 MHz to 3 GHz
    Impedance 75 Ohms (nominal)
    Return Loss (Gated)
    5 to 1,000 MHz -30 dB Minimum
    1,000 to 2000 MHz -30 dB Minimum
    2,000 to 3,000 MHz -20 dB Minimum
    Insertion Loss 5 to 3,000 MHz Less than .20 dB
    Operating Temperature -40 °F to 140 °F (-40 °C to 60 °C)
    Cable Retention 45 lbs (20.41 kg) minimum
  • Constructed with Brass, Nickel Plated, Anti-Corrosion Materials
  • Excellent Shielding Protection
  • Unique 7/16 in nut profile allows hand tightening while discouraging wrench-tightening on CPEs
  • Maintains ground continuity even when very loose
  • Reduces QAM errors/packet loss
  • Prevents service issues from loose connections


*** ***

IMPORTANT INFORMATION


Standard RG-6 cable (1786-RG6/A with attenuation of 5.99 dB) number of taps in your segment (there is no minimum trunk-cable section length requirement). The maximum allowable total length of a segment is 1,000 m (3,280 ft) with two taps connected. Typical signal loss is approximately -5dB per 100ft. for TV reception. Please consider length below 200ft for minimal signal loss for most TV and satellite TV applications. We recommend to use RG11 for length above 150ft and longer. See our RG11 page for additional information. For recommendation and or usage application, please consult with your service provider or our helpdesk prior to making a purchase.
