PHATSAT

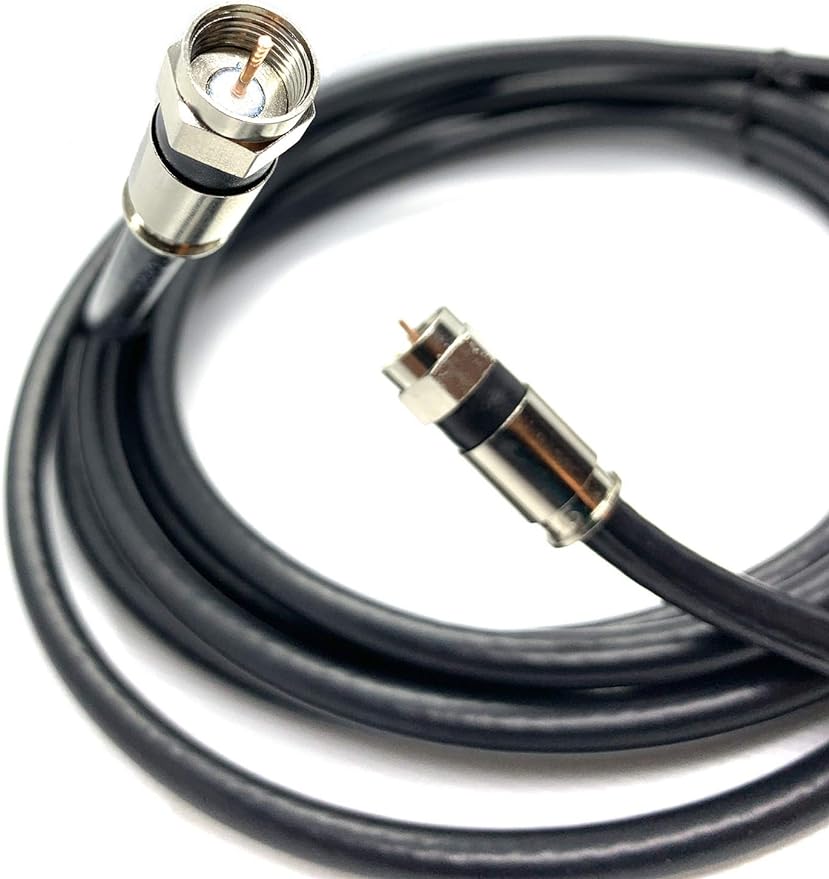

PHAT Satellite - Enhanced RG6U Tri Shield Direct Burial Coax Underground Coaxial Cable with Harsh Environment connector in USA (101 to 150 feet, Black)

PHAT Satellite - Enhanced RG6U Tri Shield Direct Burial Coax Underground Coaxial Cable with Harsh Environment connector in USA (101 to 150 feet, Black)

Regular price $24.50
Regular price Sale price $24.50
Sale Sold out
Length

Individually hand crafted, swept tested in the USA. Tri-shield Solid Core Direct Burial RG6 designed for Direct Burial Underground signal transmission, semi-wet gel coated braids with moisture inhibitor UL listed. Underground usage with moisture proofed jacket in compliance to UL standards.The connectors are selectively paired, high pressure-compressed onto the cable's jacket to ensure resilience to withstand abrasion from installation works. Each cable are swept tested and made to strict standard specifications with 6 staging quality control procedures.



CABLE APPLICATIONS

  • Ultra High Definition (UHD) 4k Cable TV
  • Gigabit High Speed cable internet service
  • remote sensor, RDF modulators and devices
  • Signal amplifier for various applications
  • application with high moisture environment that requires moisture inhibitor properties for extra signal transmission protection



CONNECTORS

  • Male F-type to Male F-type coaxial connector
  • Designed for DBS and broadband installations. Compatible with all application frequencies.
  • Engineered from precision machined copper alloy, UV protected POM, silicone rubber and rubber (“O” ring).
  • The ANYTOOL® design works with ANY standard compression tool.
  • Rear shell cannot back up. Locks coax cable securely and positively in place.
  • Additional sealing “O” ring at post face
  • Indoor and Outdoor application, tested to SCTE standards, weatherproof for hostile environments
  • 21mm XL standards
  • Bandwidth: 2 MHz to 3 GHz
    Impedance: 75 Ohms nominal
    Shielding Effectiveness: Better than -80 dB (cable dependent)
    Return Loss: Minimum -30db to 2.2 GHz
    Operating Temperature -40 °F to 140 °F (-40 °C to 60 °C)
    Cable Retention 43 lbs minimum
  • 7/16 in nut profile
  • SCTE-103-2004 (DC Contact Resistance), ASTM-B117-03 (Salt Spray Test), ANSI/SCTE-99-2004 (Axial Pull Test), SCTE-98-2004 (Tightening Torque), SCTE-73-2002 (Coaxial Insertion Force), SCTE-48-3-2004 (Shielding Effectiveness), ANSI/SCTE-04-1997 (F Connector Return Loss), SBCA Standards of Physical Dimension Tolerance, GR-1503-Core, Issue 1, March 1995 (UV Degradation)


*** ***

IMPORTANT INFORMATION


Standard RG-6 cable (1786-RG6/A with attenuation of 5.99 dB) number of taps in your segment (there is no minimum trunk-cable section length requirement). The maximum allowable total length of a segment is 1,000 m (3,280 ft) with two taps connected. Typical signal loss is approximately -5dB per 100ft. for TV reception. Please consider length below 200ft for minimal signal loss for most TV and satellite TV applications. We recommend to use RG11 for length above 150ft and longer. See our RG11 page for additional information. For recommendation and or usage application, please consult with your service provider or our helpdesk prior to making a purchase.
