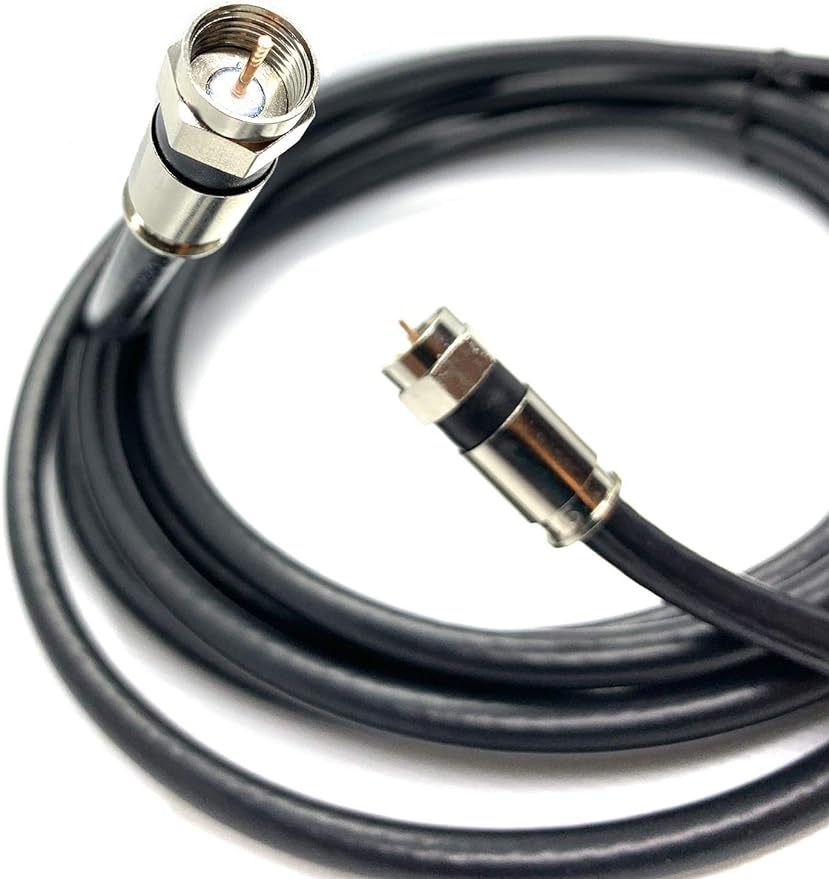

Phat Satellite Hand crafted Swept tested Hostile Environment Indoor or Outdoor Solid Copper Core RG6 coaxial cable for TV Antenna and Satellite TV (100- 150 feet, Black)
Phat Satellite Hand crafted Swept tested Hostile Environment Indoor or Outdoor Solid Copper Core RG6 coaxial cable for TV Antenna and Satellite TV (100- 150 feet, Black)
These coaxial cables are hand crafted in the USA. Premium solid copper core RG6 is selected for superior signal transmission performance, high definition video, crisp audio sound quality, durability and longevity. Solid copper is a great conductor of electricity and a perfect choice for sending signal between devices. The CL2 rating indicates that the jacket of the cable has been treated with a flame retardant in order to comply with fire safety regulations for in-wall installations. This cable is safe for use through or within walls of residential buildings. The connectors are compressed onto the cable's jacket to ensure resilience to withstand abrasion from installation works. Each cable are swept tested and made to high standard specification with 6 staging quality control procedures.
CABLE APPLICATIONS
- Over the Air (OTA) Digital High DefinitionTV antenna
- Ultra High Definition (UHD) 4k Satellite TV
- Gigabit High Speed cable internet service
- selected Cellular signal boosters
- remote sensor, RDF modulators and devices
- Signal amplifier for various applications
- Ham radio, Magnetic Loop Antennas
CABLE SPECIFICATION
- Solid Bare Copper 18AWG
- Dual Shield 60% Braided , 100% Aluminum Foil Shield
- Impedance: 75 Ohms ± 3 Ohms
Capacitance: 16.2 PF/ft ± 1.0 PF/ft
Velocity of Propagation: 83%
Nominal Delay: 1.22 NS/ft
Conductor DC Resistance: 22 Ohms / Km
Shield DC Resistance: 43 Ohms / Km
Swept Tested: 5 MHZ~3000 MHz - Ultra HD approved
- Indoor and Outdoor usage
- Operating Temperature: -40° C through +75 C
- UL ETL CL2 Rated for In-Wall Installation
- SBCA compliant
- UV coated PVC jacket
- Foamed polyethylene
CONNECTORS
- Male F-type to Male F-type coaxial connector
- Designed for DBS and broadband installations. Compatible with all application frequencies.
- Engineered from precision machined copper alloy, UV protected POM, silicone rubber and rubber (“O” ring).
- The ANYTOOL® design works with ANY standard compression tool.
- Rear shell cannot back up. Locks coax cable securely and positively in place.
- Additional sealing “O” ring at post face
- Indoor and Outdoor application, tested to SCTE standards, weatherproof for hostile environments
- 21mm XL standards
- Bandwidth: 2 MHz to 3 GHz
Impedance: 75 Ohms nominal
Shielding Effectiveness: Better than -80 dB (cable dependent)
Return Loss: Minimum -30db to 2.2 GHz
Operating Temperature -40 °F to 140 °F (-40 °C to 60 °C)
Cable Retention 43 lbs minimum - 7/16 in nut profile
- SCTE-103-2004 (DC Contact Resistance), ASTM-B117-03 (Salt Spray Test), ANSI/SCTE-99-2004 (Axial Pull Test), SCTE-98-2004 (Tightening Torque), SCTE-73-2002 (Coaxial Insertion Force), SCTE-48-3-2004 (Shielding Effectiveness), ANSI/SCTE-04-1997 (F Connector Return Loss), SBCA Standards of Physical Dimension Tolerance, GR-1503-Core, Issue 1, March 1995 (UV Degradation)
*** ***
IMPORTANT INFORMATION
Standard RG-6 cable (1786-RG6/A with attenuation of 5.99 dB) number of taps in your segment (there is no minimum trunk-cable section length requirement). The maximum allowable total length of a segment is 1,000 m (3,280 ft) with two taps connected. Typical signal loss is approximately -5dB per 100ft. for TV reception. Please consider length below 200ft for minimal signal loss for most TV and satellite TV applications. We recommend to use RG11 for length above 150ft and longer. See our RG11 page for additional information. For recommendation and or usage application, please consult with your service provider or our helpdesk prior to making a purchase.
