Phat Satellite Hand crafted Swept tested Solid Copper Core RG6 coaxial cable for TV Antenna and Satellite TV (1 - 50 feet, Black)

These coaxial cables are hand crafted in the USA. Premium solid copper core RG6 is selected for superior signal transmission performance, high definition video, crisp audio sound quality, durability and longevity. Solid copper is a great conductor of electricity and a perfect choice for sending signal between devices. The CL2 rating indicates that the jacket of the cable has been treated with a flame retardant in order to comply with fire safety regulations for in-wall installations. This cable is safe for use through or within walls of residential buildings. The connectors are compressed onto the cable's jacket to ensure resilience to withstand abrasion from installation works. Each cable are swept tested and made to high standard specification with 6 staging quality control procedures.

CABLE APPLICATIONS

• Over the Air (OTA) Digital High DefinitionTV antenna
• Ultra High Definition (UHD) 4k Satellite TV
• Gigabit High Speed cable internet service
• selected Cellular signal boosters
• remote sensor, RDF modulators and devices
• Signal amplifier for various applications
• Ham radio, Magnetic Loop Antennas

CABLE SPECIFICATION

• Solid Bare Copper 18AWG
• Dual Shield 60% Braided , 100% Aluminum Foil Shield
• Impedance: 75 Ohms ± 3 Ohms
  Capacitance: 16.2 PF/ft ± 1.0 PF/ft
  Velocity of Propagation: 83%
  Nominal Delay: 1.22 NS/ft
  Conductor DC Resistance: 22 Ohms / Km
  Shield DC Resistance: 43 Ohms / Km
  Swept Tested: 5 MHZ~3000 MHz
• Ultra HD approved
• Indoor and Outdoor usage
• Operating Temperature: -40° C through +75 C
• UL ETL CL2 Rated for In-Wall Installation
• SBCA compliant
• UV coated PVC jacket
• Foamed polyethylene

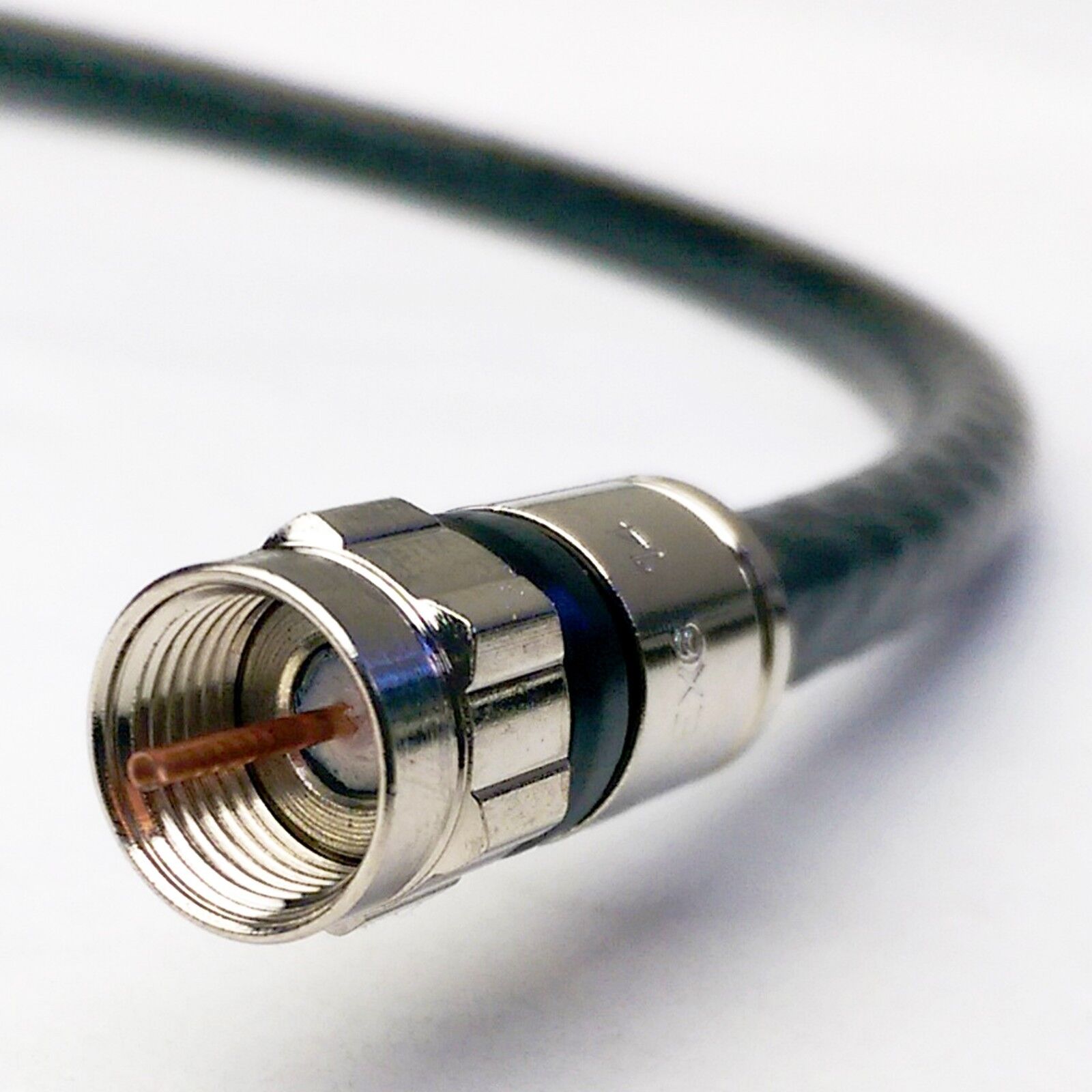

CONNECTORS

• Male F-type to Male F-type coaxial connector
• Uses the dynamic range of the tough yet versatile plastic body to seal in the most effective way possible.
• Metal compression ring also allows industry leading cable retention values through all cable sizes in the field
• Bandwidth 0 MHz to 3 GHz
  Impedance 75 Ohms (nominal)
  Return Loss (Gated)
  5 to 1,000 MHz -30 dB Minimum
  1,000 to 2000 MHz -30 dB Minimum
  2,000 to 3,000 MHz -20 dB Minimum
  Insertion Loss 5 to 3,000 MHz Less than .20 dB
  Operating Temperature -40 °F to 140 °F (-40 °C to 60 °C)
  Cable Retention 45 lbs (20.41 kg) minimum
• Constructed with Brass, Nickel Plated, Anti-Corrosion Materials
• Excellent Shielding Protection
• Unique 7/16 in nut profile allows hand tightening while discouraging wrench-tightening on CPEs
• Maintains ground continuity even when very loose
• Reduces QAM errors/packet loss
• Prevents service issues from loose connections

*** ***

IMPORTANT INFORMATION

Standard RG-6 cable (1786-RG6/A with attenuation of 5.99 dB) number of taps in your segment (there is no minimum trunk-cable section length requirement). The maximum allowable total length of a segment is 1,000 m (3,280 ft) with two taps connected. Typical signal loss is approximately -5dB per 100ft. for TV reception. Please consider length below 200ft for minimal signal loss for most TV and satellite TV applications. We recommend to use RG11 for length above 150ft and longer. See our RG11 page for additional information. For recommendation and or usage application, please consult with your service provider or our helpdesk prior to making a purchase.
