Phat Satellite QUAD SHIELD SOLID COPPER 3GHZ RG-6 Coaxial Cable 75 Ohm (DIRECTV Satellite TV or Broadband Internet) ANTI CORROSION BRASS CONNECTOR RG6 Fittings Assembled in USA (1 to 50 feet, Black)

Individually hand crafted, swept tested in the USA. Quadshield Solid Bare Annealed Copper Core RG6 designed for superior signal transmission, minimal signal loss, and extended durability. UL listed. Indoor and Outdoor use with UV protected jacket in compliance to UL1581 standards. The connectors are selectively paired, high pressure-compressed onto the cable's jacket to ensure resilience to withstand abrasion from installation works. Each cable are swept tested and made to strict standard specifications with 6 staging quality control procedures.

CABLE APPLICATIONS

• Over the Air (OTA) Digital High DefinitionTV antenna
• Ultra High Definition (UHD) 4k Cable TV
• Ultra High Definition (UHD) 4k Satellite TV
• Gigabit High Speed cable internet service
• remote sensor, RDF modulators and devices
• Signal amplifier for various applications
• application with possible high interference within the environment or devices that requires quadshield properties

CABLE SPECIFICATION

• Solid Copper Core 18AWG, Nominal OD: 1.02 ± 0.01 mm
• Adhesive: EAA (inner foil only)
  Foil Shield Coverage: 100% (18% Overlap Min ) each shield
  Foil Shield Material: Aluminum Magnesium Alloy
  Braid Coverage: 60% inner braid (64 counts), 40% outer braid (48 counts)
• Gas Injected Foamed PE, Nominal OD 4.57 ± 0.10mm
• Impedance 75 Ohms ± 3 Ohms
  Velocity of Propagation 83%
  Capacitance 16.2 pF/ft
  Nominal Delay 1.22 NS/ft.
  Inner Conductor DC Resistance 22 Ω/km
  Shield DC Resistance 19 Ω/km
  Sweep Tested 5 MHz to 3000 MHz
  UL Listed CATV / CM
• Ultra HD approved
• Indoor and Outdoor usage
• Operating Temperature: -40°C through +75°C
• Bonded APA Laminate Shield
• UV Protected PVC jacket Complies with UL 1581
• Jacket Nominal OD 7.60 ± 0.15mm

CONNECTORS

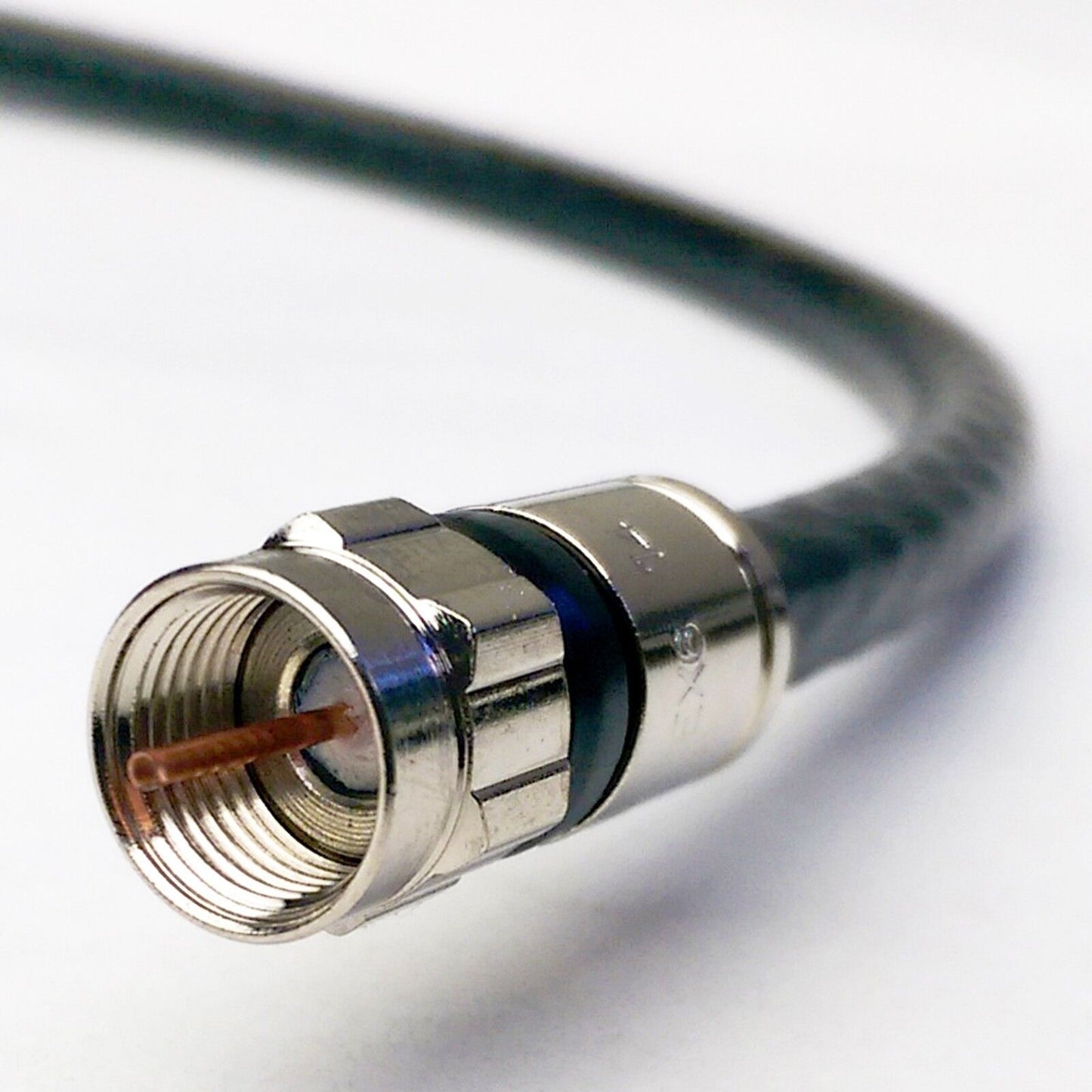

• Male F-type to Male F-type coaxial connector
• Uses the dynamic range of the tough yet versatile plastic body to seal in the most effective way possible.
• Metal compression ring also allows industry leading cable retention values through all cable sizes in the field
• Bandwidth 0 MHz to 3 GHz
  Impedance 75 Ohms (nominal)
  Return Loss (Gated)
  5 to 1,000 MHz -30 dB Minimum
  1,000 to 2000 MHz -30 dB Minimum
  2,000 to 3,000 MHz -20 dB Minimum
  Insertion Loss 5 to 3,000 MHz Less than .20 dB
  Operating Temperature -40 °F to 140 °F (-40 °C to 60 °C)
  Cable Retention 45 lbs (20.41 kg) minimum
• Constructed with Brass, Nickel Plated, Anti-Corrosion Materials
• Excellent Shielding Protection
• Unique 7/16 in nut profile allows hand tightening while discouraging wrench-tightening on CPEs
• Maintains ground continuity even when very loose
• Reduces QAM errors/packet loss
• Prevents service issues from loose connections

*** ***

IMPORTANT INFORMATION

Standard RG-6 cable (1786-RG6/A with attenuation of 5.99 dB) number of taps in your segment (there is no minimum trunk-cable section length requirement). The maximum allowable total length of a segment is 1,000 m (3,280 ft) with two taps connected. Typical signal loss is approximately -5dB per 100ft. for TV reception. Please consider length below 200ft for minimal signal loss for most TV and satellite TV applications. We recommend to use RG11 for length above 150ft and longer. See our RG11 page for additional information. For recommendation and or usage application, please consult with your service provider or our helpdesk prior to making a purchase.
