PSI, Quad Shield RG-6 Coax 75 Ohm Cable with Solid Copper Center Conductor for Digital CATV, Satellite TV, or Broadband Internet (101 to 150 feet, Black)

Individually hand crafted, swept tested in the USA. Quadshield Solid Bare Annealed Copper Core RG6 designed for superior signal transmission, minimal signal loss, and extended durability. UL listed. Indoor and Outdoor use with UV protected jacket in compliance to UL1581 standards. The connectors are selectively paired, high pressure-compressed onto the cable's jacket to ensure resilience to withstand abrasion from installation works. Each cable are swept tested and made to strict standard specifications with 6 staging quality control procedures.

CABLE APPLICATIONS

• Over the Air (OTA) Digital High DefinitionTV antenna
• Ultra High Definition (UHD) 4k Cable TV
• Ultra High Definition (UHD) 4k Satellite TV
• Gigabit High Speed cable internet service
• remote sensor, RDF modulators and devices
• Signal amplifier for various applications
• application with possible high interference within the environment or devices that requires quadshield properties

CABLE SPECIFICATION

• Solid Copper Core 18AWG, Nominal OD: 1.02 ± 0.01 mm
• Adhesive: EAA (inner foil only)
  Foil Shield Coverage: 100% (18% Overlap Min ) each shield
  Foil Shield Material: Aluminum Magnesium Alloy
  Braid Coverage: 60% inner braid (64 counts), 40% outer braid (48 counts)
• Gas Injected Foamed PE, Nominal OD 4.57 ± 0.10mm
• Impedance 75 Ohms ± 3 Ohms
  Velocity of Propagation 83%
  Capacitance 16.2 pF/ft
  Nominal Delay 1.22 NS/ft.
  Inner Conductor DC Resistance 22 Ω/km
  Shield DC Resistance 19 Ω/km
  Sweep Tested 5 MHz to 3000 MHz
  UL Listed CATV / CM
• Ultra HD approved
• Indoor and Outdoor usage
• Operating Temperature: -40°C through +75°C
• Bonded APA Laminate Shield
• UV Protected PVC jacket Complies with UL 1581
• Jacket Nominal OD 7.60 ± 0.15mm

CONNECTORS

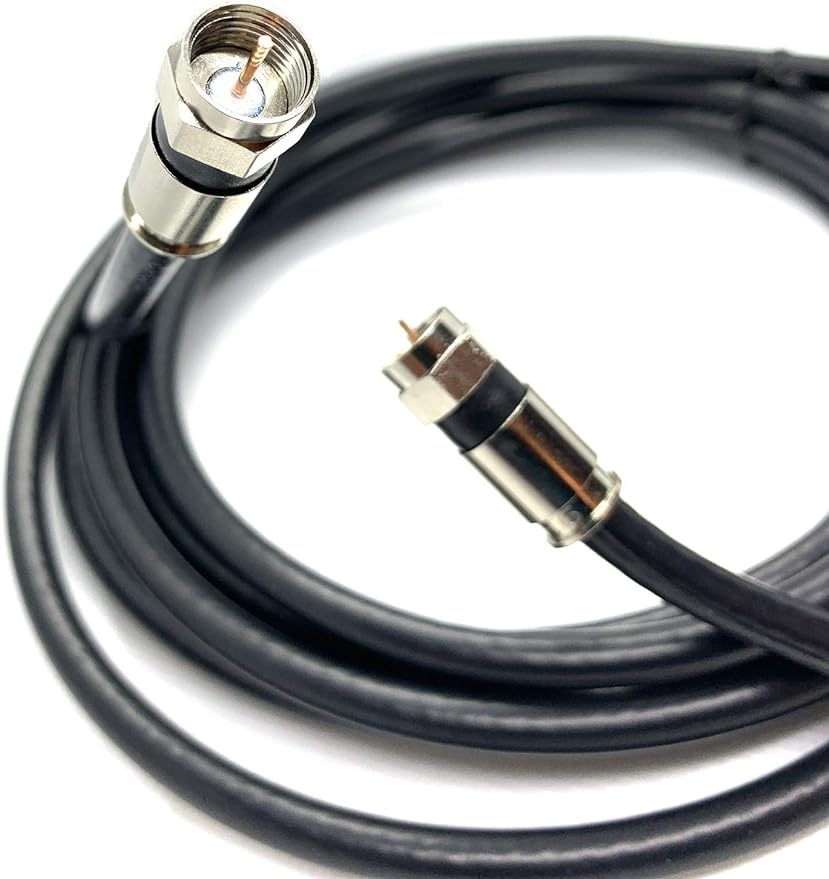

• Male F-type to Male F-type coaxial connector
• Designed for DBS and broadband installations. Compatible with all application frequencies.
• Engineered from precision machined copper alloy, UV protected POM, silicone rubber and rubber (“O” ring).
• The ANYTOOL® design works with ANY standard compression tool.
• Rear shell cannot back up. Locks coax cable securely and positively in place.
• Additional sealing “O” ring at post face
• Indoor and Outdoor application, tested to SCTE standards, weatherproof for hostile environments
• 21mm XL standards
• Bandwidth: 2 MHz to 3 GHz
  Impedance: 75 Ohms nominal
  Shielding Effectiveness: Better than -80 dB (cable dependent)
  Return Loss: Minimum -30db to 2.2 GHz
  Operating Temperature -40 °F to 140 °F (-40 °C to 60 °C)
  Cable Retention 43 lbs minimum
• 7/16 in nut profile
• SCTE-103-2004 (DC Contact Resistance), ASTM-B117-03 (Salt Spray Test), ANSI/SCTE-99-2004 (Axial Pull Test), SCTE-98-2004 (Tightening Torque), SCTE-73-2002 (Coaxial Insertion Force), SCTE-48-3-2004 (Shielding Effectiveness), ANSI/SCTE-04-1997 (F Connector Return Loss), SBCA Standards of Physical Dimension Tolerance, GR-1503-Core, Issue 1, March 1995 (UV Degradation)

*** ***

IMPORTANT INFORMATION

Standard RG-6 cable (1786-RG6/A with attenuation of 5.99 dB) number of taps in your segment (there is no minimum trunk-cable section length requirement). The maximum allowable total length of a segment is 1,000 m (3,280 ft) with two taps connected. Typical signal loss is approximately -5dB per 100ft. for TV reception. Please consider length below 200ft for minimal signal loss for most TV and satellite TV applications. We recommend to use RG11 for length above 150ft and longer. See our RG11 page for additional information. For recommendation and or usage application, please consult with your service provider or our helpdesk prior to making a purchase.
