PHATSAT

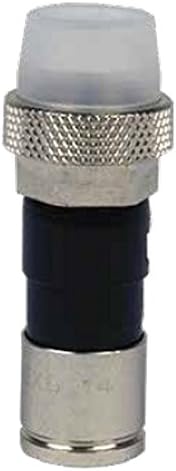

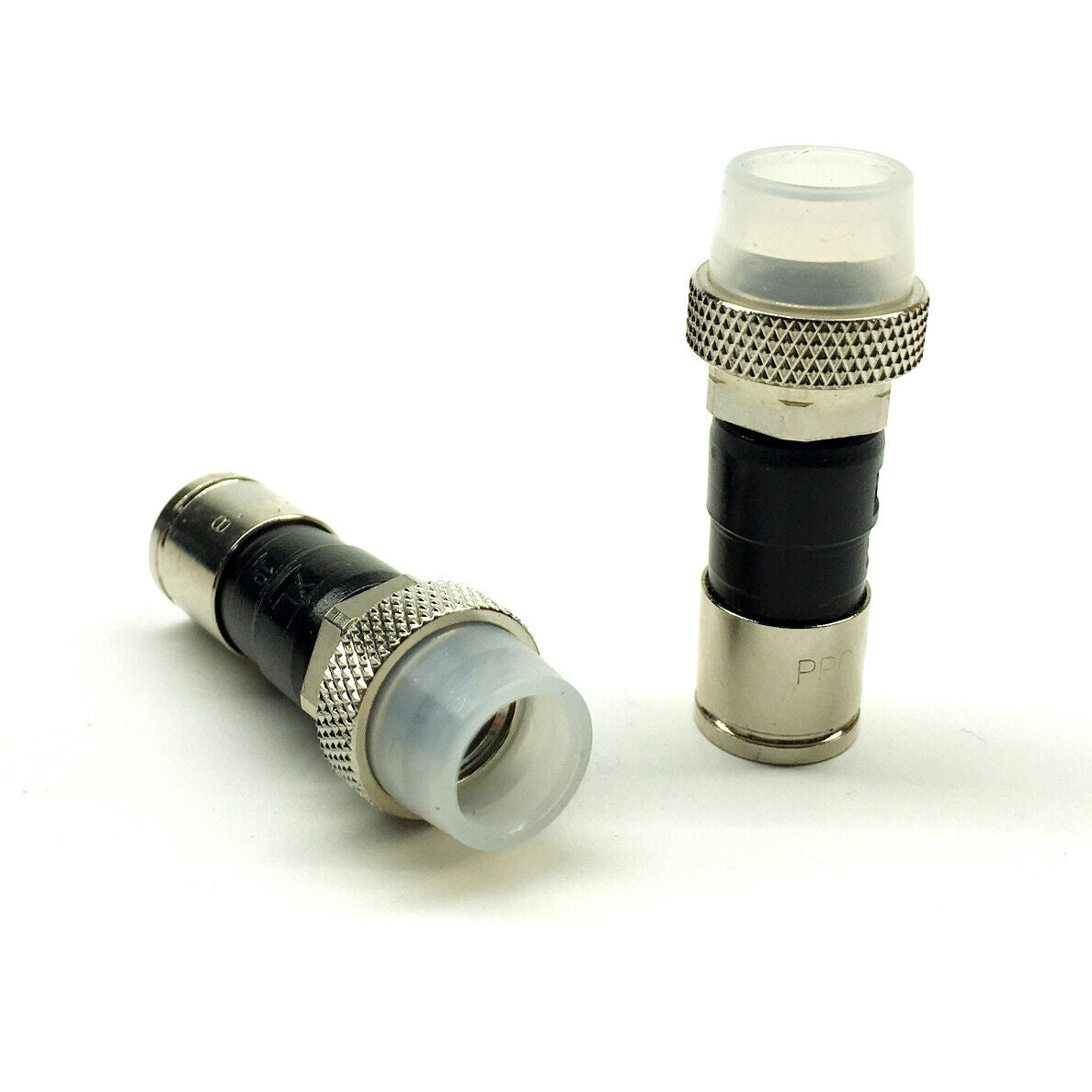

RG6 EX6XLWSPLUS Weather Boot Aqua Tight EX Series Weather Proof Anti-Corrosion Nickel-Plated Brass Construction Coaxial Cable Compression Connectors

RG6 EX6XLWSPLUS Weather Boot Aqua Tight EX Series Weather Proof Anti-Corrosion Nickel-Plated Brass Construction Coaxial Cable Compression Connectors

Regular price $6.00
Regular price Sale price $6.00
Sale Sold out
Quantity
  • Male F-type to Male F-type coaxial connector
  • Plastic body seals the back end of the connector from environmental factors
  • Metal compression ring also allows industry leading cable retention values from standard to quad shield
  • Maintains ground continuity even when very loose
  • Reduces QAM errors/packet loss
  • Integrated Weather Seal (Weather boot) ensures a moisture-tight seal on every connection and enables an easy visual port entry
  • Protects against digital video artifacts, DOCSIS performance degradation, LTE interference, and upstream signal-to-noise issues
  • Knurled grip enhances ability to pre-tighten with fingers prior to wrench tightening
  • Bandwidth 0 MHz to 3 GHz
    Impedance 75 Ohms (nominal)
    Return Loss (Gated)
    5 to 1,000 MHz -30 dB Minimum
    1,000 to 2000 MHz -30 dB Minimum
    2,000 to 3,000 MHz -20 dB Minimum
    Insertion Loss 5 to 3,000 MHz Less than .20 dB
    Operating Temperature -40 °F to 140 °F (-40 °C to 60 °C)
    Cable Retention 45 lbs (20.41 kg) minimum
  • Constructed with Brass, Nickel Plated, Anti-Corrosion Materials
  • Excellent Shielding Protection
  • Unique 7/16 in Snap Torque in nut profile allows hand tightening while discouraging wrench-tightening on CPEs
  • Maintains ground continuity even when very loose
  • Reduces QAM errors/packet loss
  • Prevents service issues from loose connections


*** ***
