SOLID COPPER RG6 DIRECT BURIAL UNDERGROUND COAXIAL CABLE WITH 17AWG MESSENGER GROUND Assembled in USA

These coaxial cables are hand-crafted in the USA. They feature a gel-coated, braided, underground burial-rated design with a solid 18AWG copper core (RG6) and a 17AWG copper grounding wire for superior signal transmission, high-definition video, crisp audio quality, durability, and long-lasting performance. Ideal for structured wiring applications with lightning surge protection.

Solid copper is an excellent electrical conductor and ensures reliable signal transmission between devices. The CL2 rating indicates that the cable jacket is flame-retardant and compliant with fire safety regulations for in-wall installation, making it safe for residential use.

Compression-fitted connectors are securely attached to the cable jacket to enhance resilience against abrasion during installation. Each cable is swept tested and manufactured to high standards through a 6-stage quality control process.

CABLE APPLICATIONS

• Over-the-Air (OTA) Digital HD TV antennas
• Ultra High Definition (UHD) 4K satellite TV
• Gigabit high-speed cable internet service
• Selected cellular signal boosters
• Remote sensors, RDF modulators, and related devices
• Signal amplifiers for various applications
• Ham radio and magnetic loop antennas

CABLE SPECIFICATIONS

• Solid Bare Copper 18AWG
• Dual Shield: 60% braided + 100% aluminum foil shield
• Impedance: 75 Ohms ± 3 Ohms
• Capacitance: 16.2 pF/ft ± 1.0 pF/ft
• Velocity of Propagation: 83%
• Nominal Delay: 1.22 ns/ft
• Conductor DC Resistance: 22 Ohms/km
• Shield DC Resistance: 43 Ohms/km
• Swept Tested: 5 MHz – 3000 MHz
• Ultra HD Approved
• Indoor and Outdoor Use
• Operating Temperature: -40°C to +75°C
• UL ETL CL2 Rated for In-Wall Installation
• SBCA Compliant
• UV-Coated PVC Jacket
• Foamed Polyethylene Insulation

CONNECTOR OPTIONS

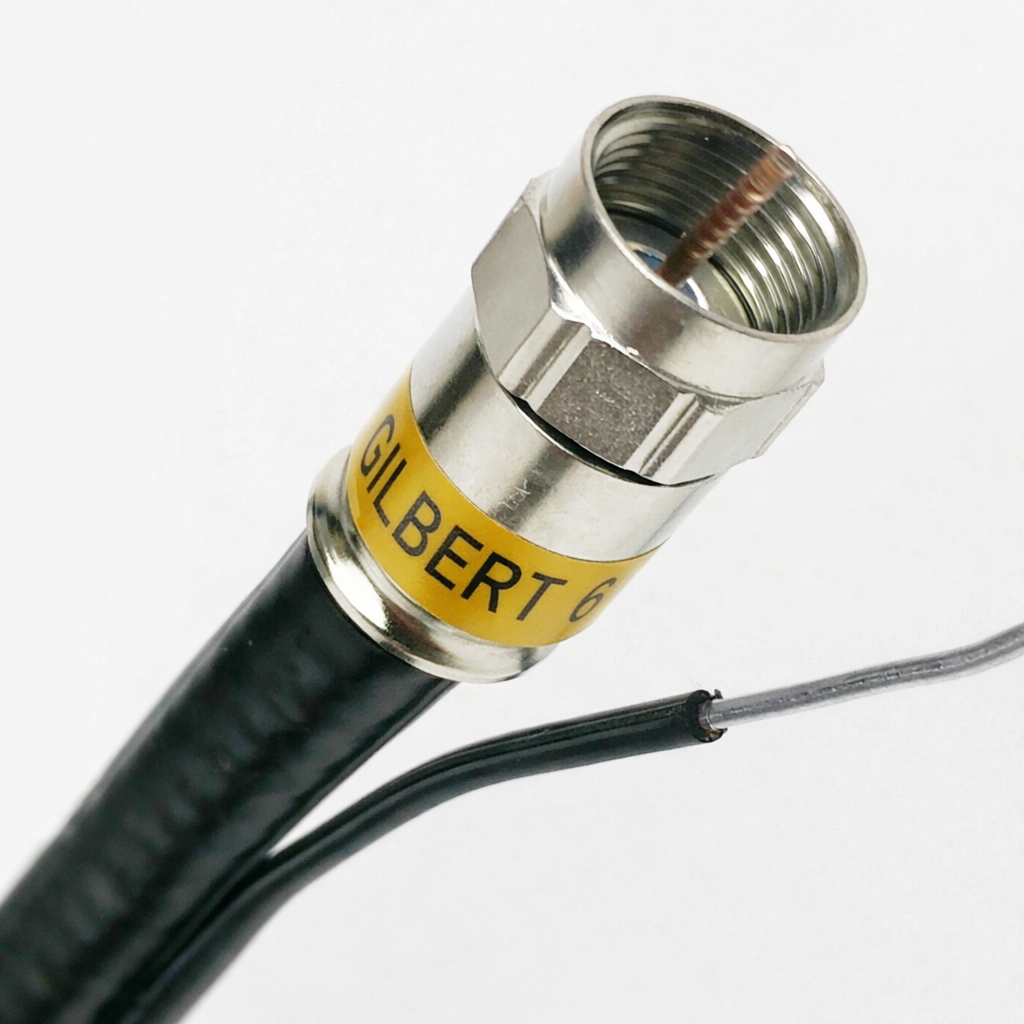

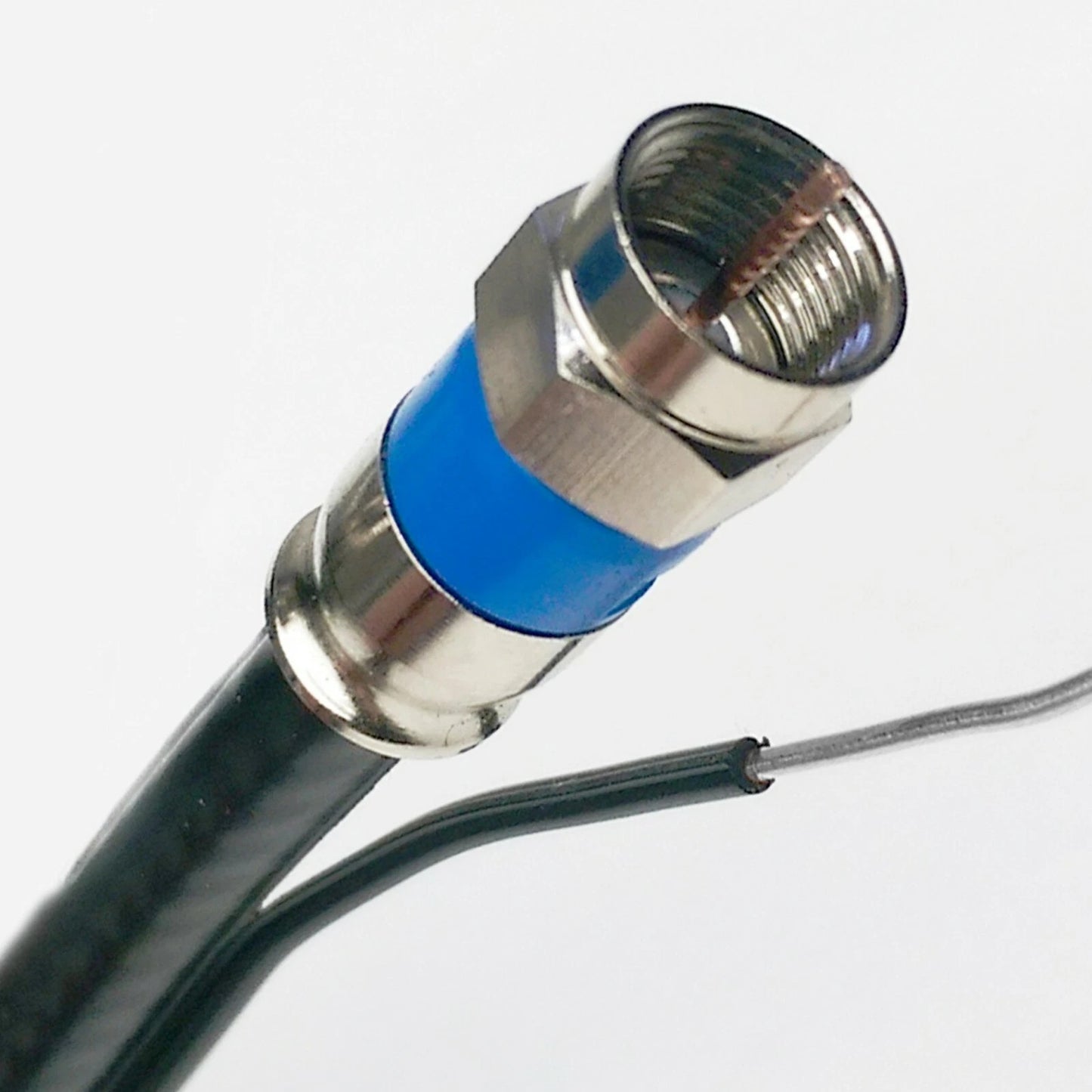

Performance Plus Connector

• Professional compression F-type connector
• 75 Ohm impedance
• Bandwidth up to 3 GHz
• Brass construction with nickel plating
• Excellent shielding protection
• Maintains ground continuity even when loose
• Reduces QAM errors and signal loss
• High cable retention strength

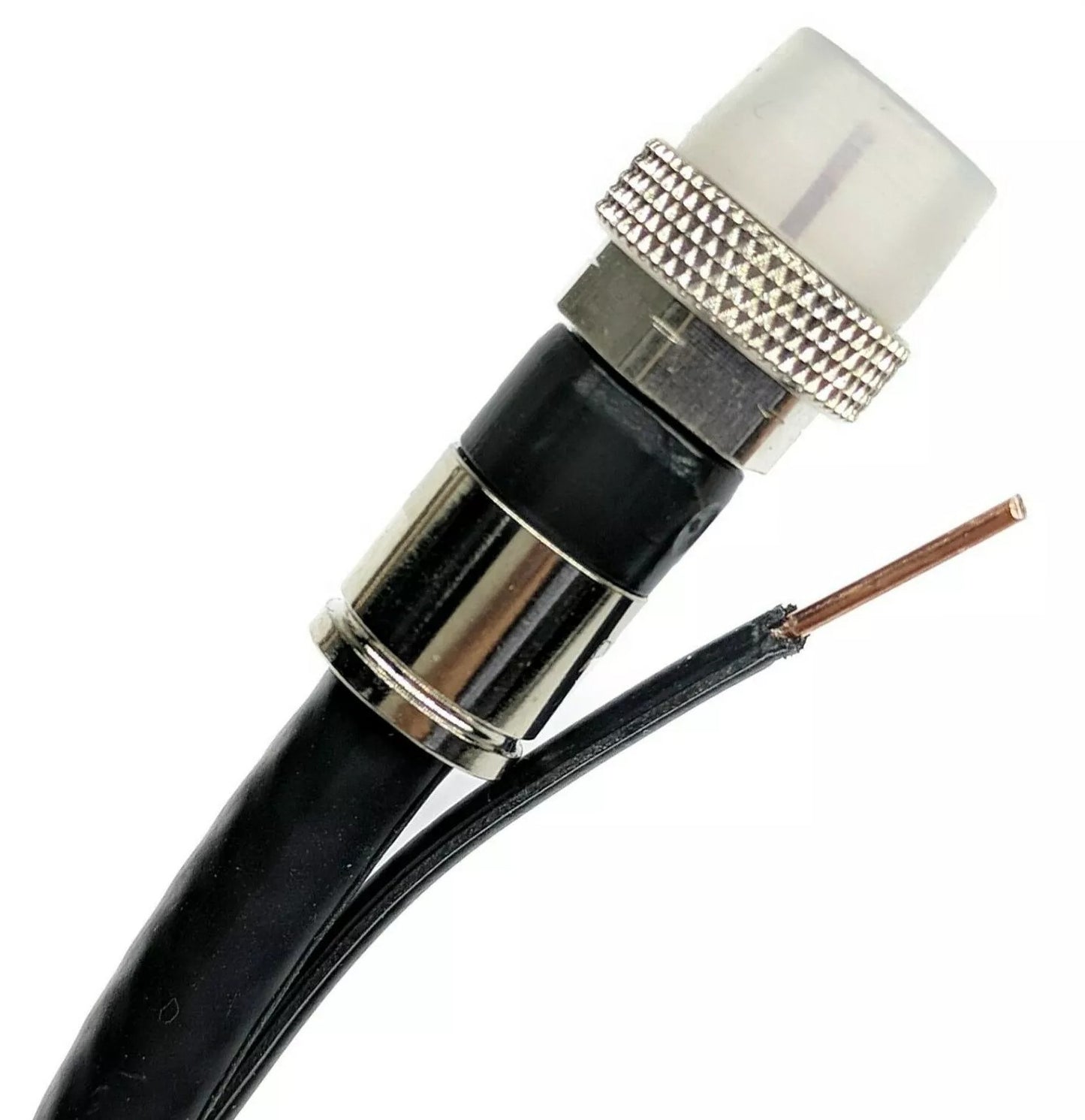

Silicon Weather-Shield Connector

• Integrated silicone weather boot
• Moisture-tight environmental seal
• Strong compression retention ring
• Ideal for outdoor installations
• Reduces LTE interference and signal noise
• Supports frequencies up to 3 GHz

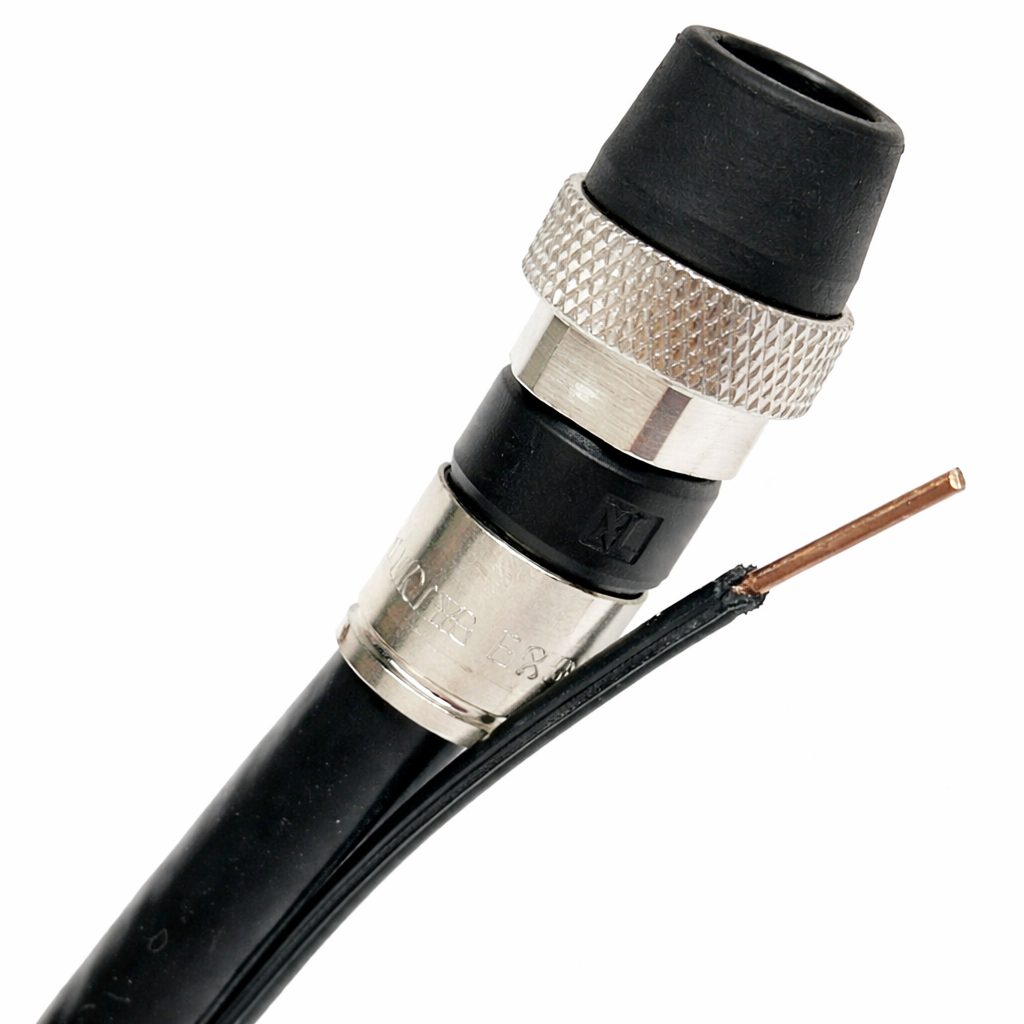

Rubber Weather-Shield Connector

• AquaTight universal drop connector
• Knurled hex design for enhanced torque
• Gas-tight nut-to-post sealing
• Large compression area for moisture protection
• Nickel-plated brass construction
• Approved for cable TV, satellite, and antenna use

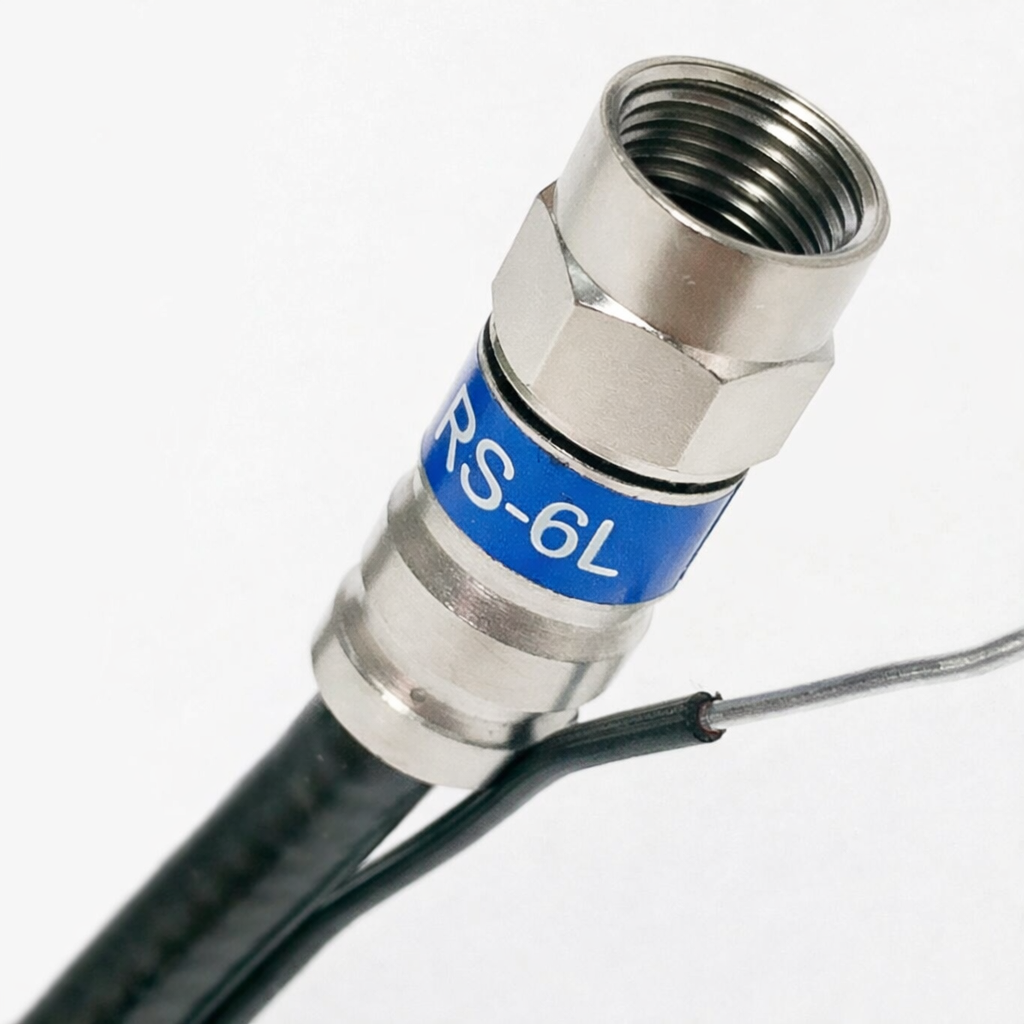

Ultimate Compression Seal Connector

• Service provider grade compression connector
• Indoor and outdoor rated design
• Extreme weather and heat resistance
• Integrated moisture sealing system
• Bandwidth up to 3 GHz
• High cable retention strength

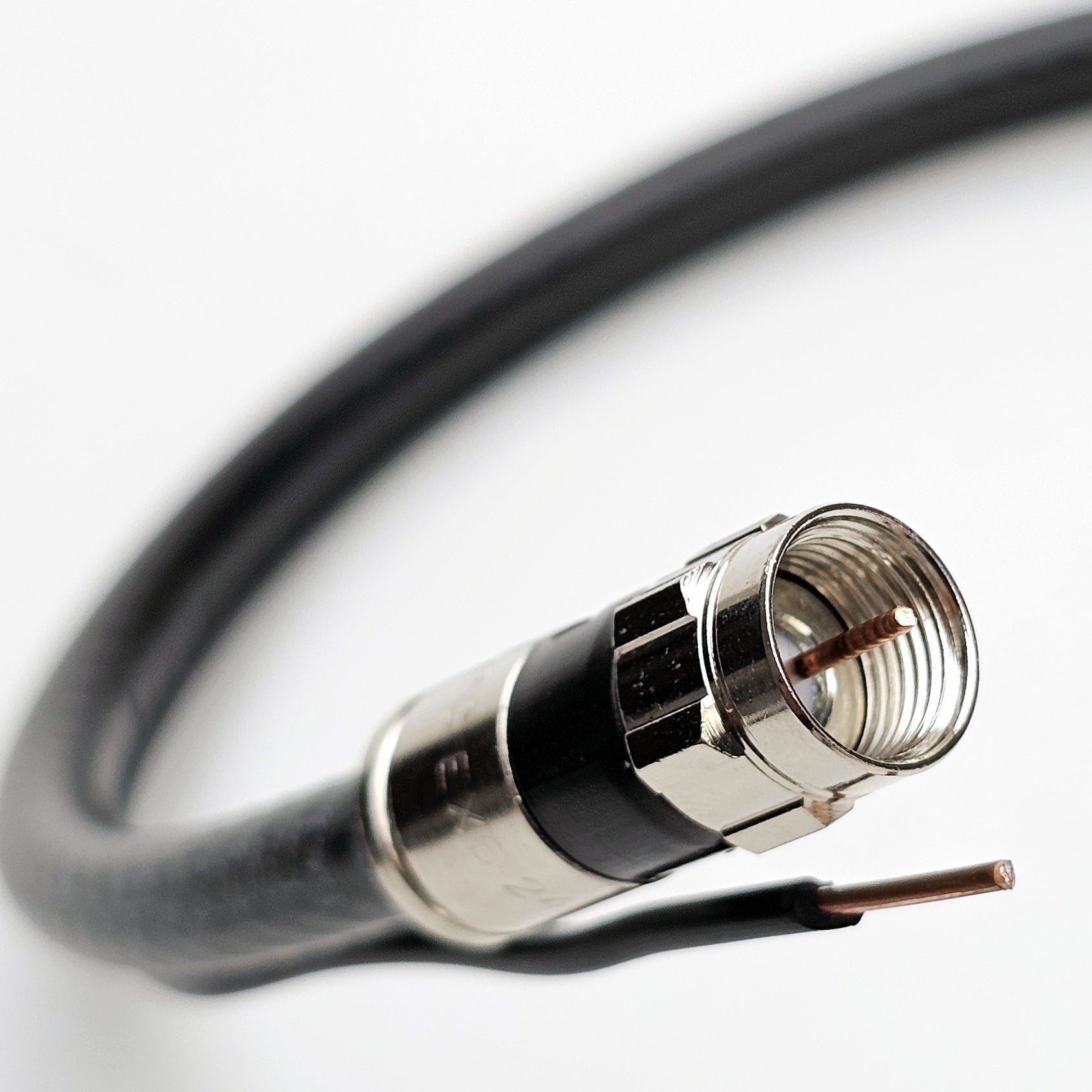

Robust Nickel Connector

• Full metal compression connector
• Heavy-duty nickel construction
• Designed for harsh environments
• High durability and long lifespan
• Strong grounding continuity
• Supports frequencies up to 3 GHz

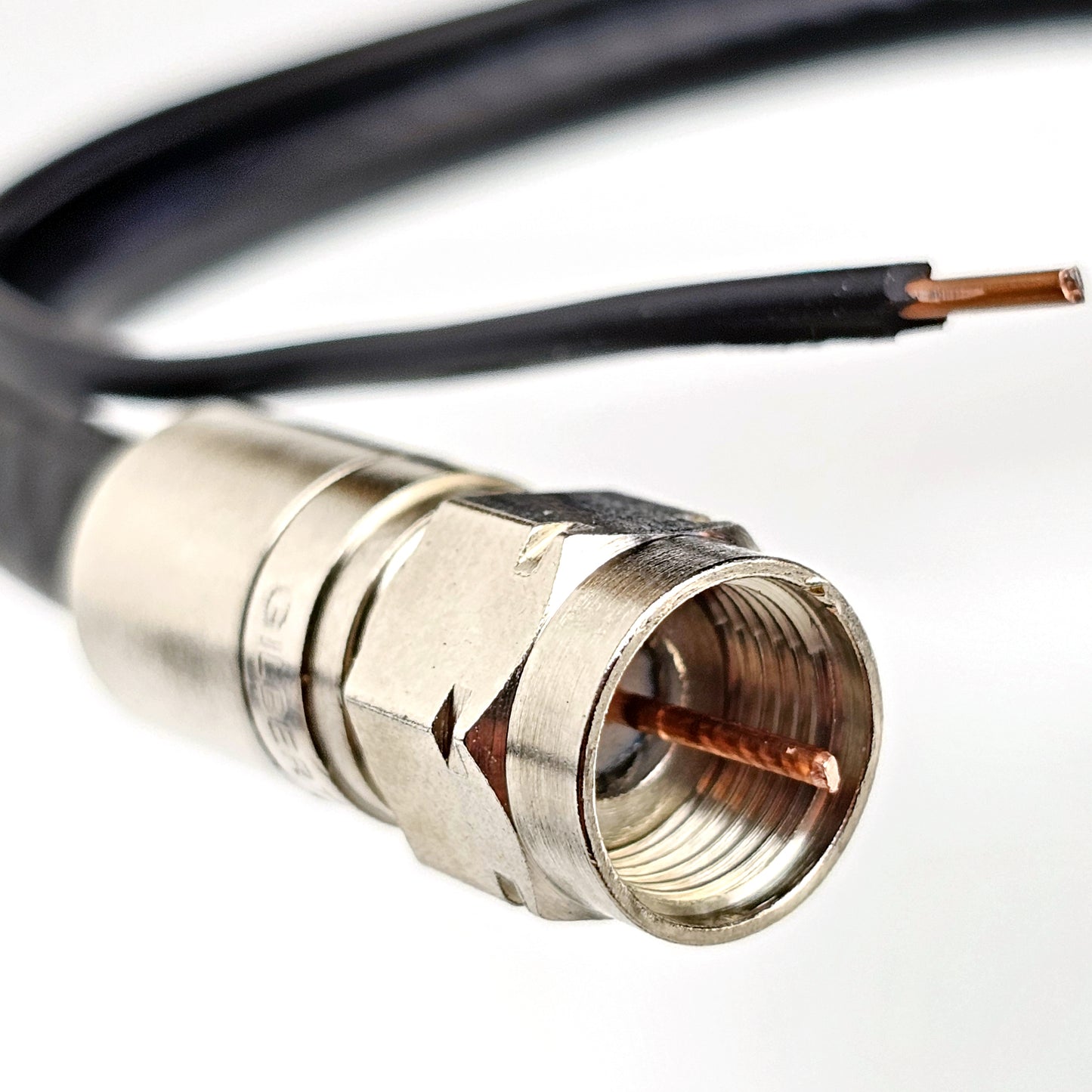

Radial Armor 360° Connector

• 360° radial compression RG6 F-type connector
• Reverse compression design for secure fit
• Compact 18mm low-profile design for tight spaces
• Reduces QAM errors and packet loss
• Requires minimal tightening effort

Weather Proof Brass Connector

• Heavy-duty brass compression connector
• Compatible with standard and quad shield cables
• Self-locking anti-loosening design
• One-piece construction for durability
